1–3 Layer Extrusion Blow Molding

IBC Tank Blow Molding Machine

A fully automatic extrusion blow molding line that produces 1000 L IBC tanks in 1 to 3 layers — and L-ring drums on the same machine — at 20–25 pieces per hour.

View Specifications Request Quote
IBC Tank Blow Molding Machine
1000 L

Product Overview

IBC Tank Blow Molding Machine

An IBC tank blow molding machine is used to produce a 1000 L IBC tank. Our products are widely accepted among our clients for rugged construction, superb finishing, and high production rate.

The line runs die-head and extruder induction heaters with a servo motor and Siemens drive for power-saving operation, and switches between L-ring drums and IBC tanks on a single machine. Rugged construction, superb finishing and a high production rate make it a dependable workhorse for industrial packaging producers.

Layers

1–3 Layer Extrusion

Produces single to triple-layer 1000 L IBC tank bottles for tailored strength, UV resistance and cost.

  • 1 to 3 layers
  • 1000 L capacity
  • 20–25 pcs/h output
  • Fully automatic
1–3 Layer Extrusion
2-in-1

L-Ring Drum & IBC on One Machine

One machine makes both L-ring drums and IBC tanks — switch products without buying a second line.

  • IBC tanks 1000 L
  • L-ring drums
  • Quick product change
  • Higher machine utilisation
L-Ring Drum & IBC on One Machine
Efficiency

Induction Heating, Power Saving

Die-head and extruder induction heaters cut energy losses compared with conventional resistance heating.

  • Induction die-head heater
  • Extruder induction heater
  • Lower energy cost
  • Stable melt temperature
Induction Heating, Power Saving
Control

Siemens Drive & Servo Motor

Siemens drive with servo motor control for precise, repeatable wall thickness and reliable cycling.

  • Siemens drive
  • Servo motor
  • Precise parison control
  • Repeatable cycles
Siemens Drive & Servo Motor

In Detail

Image Gallery

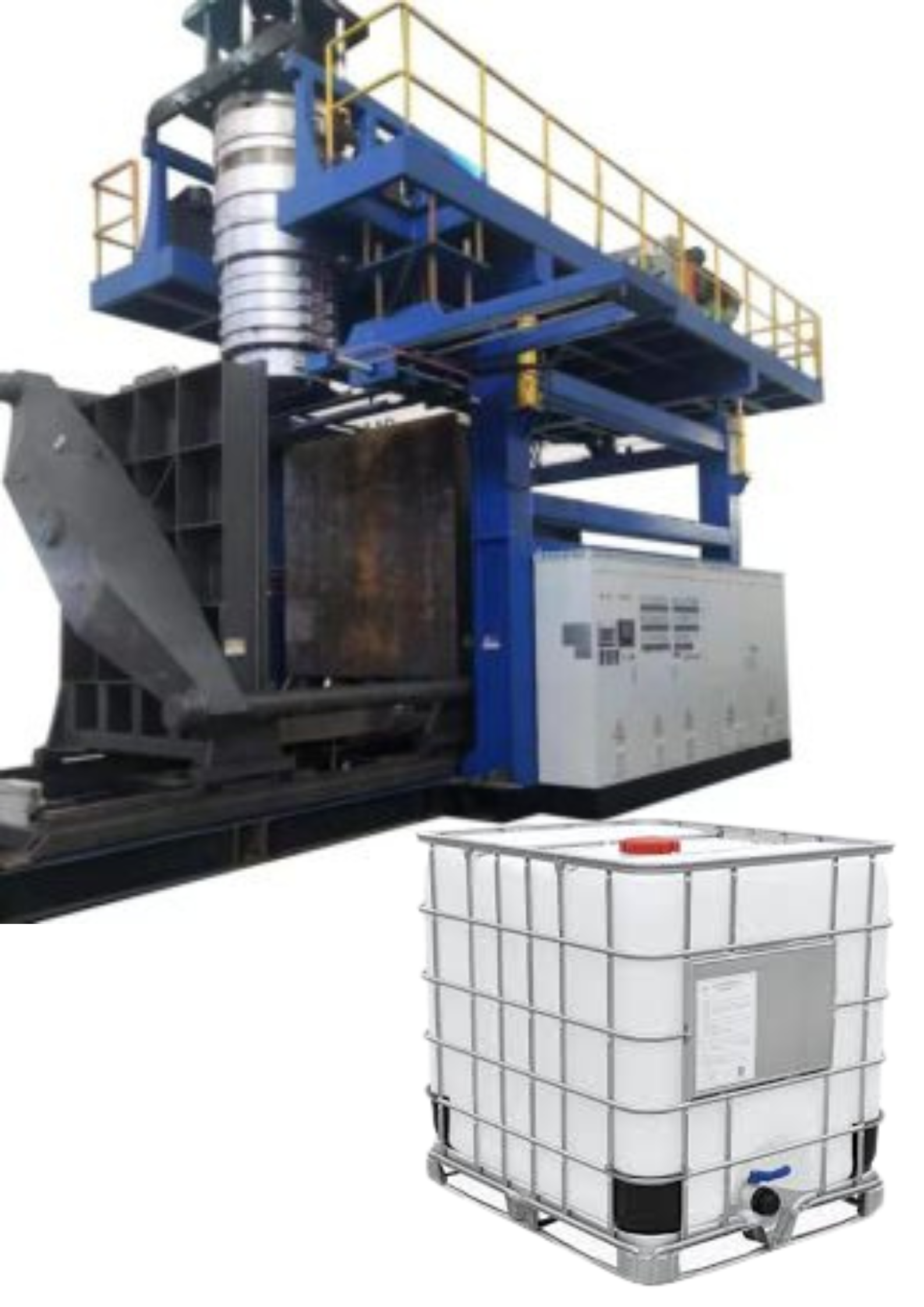

1000 L IBC tank blow molding machine — full extrusion line
3-layer IBC tank blow molding machine installed in the plant

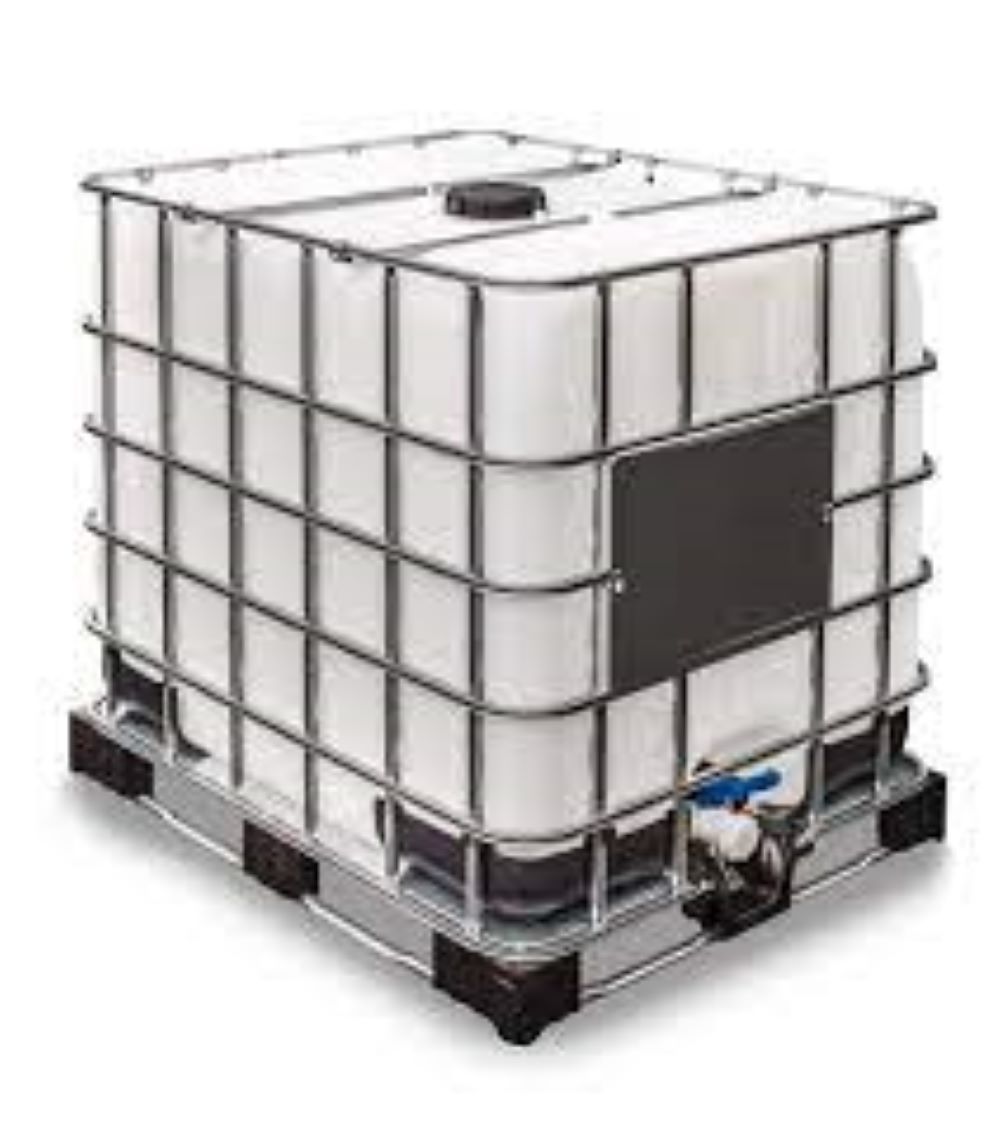

Finished 1000 L IBC tank in galvanised steel cage on composite pallet

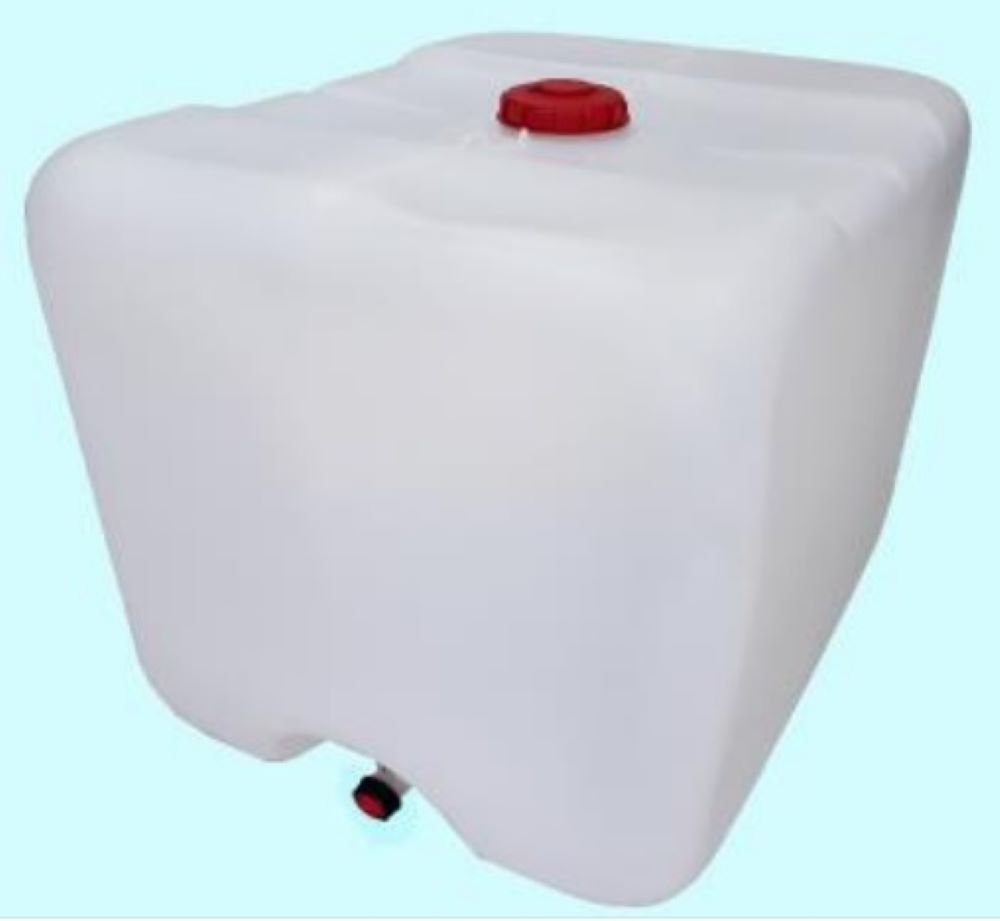

Blow-molded 1000 L HDPE IBC tank inner bottle

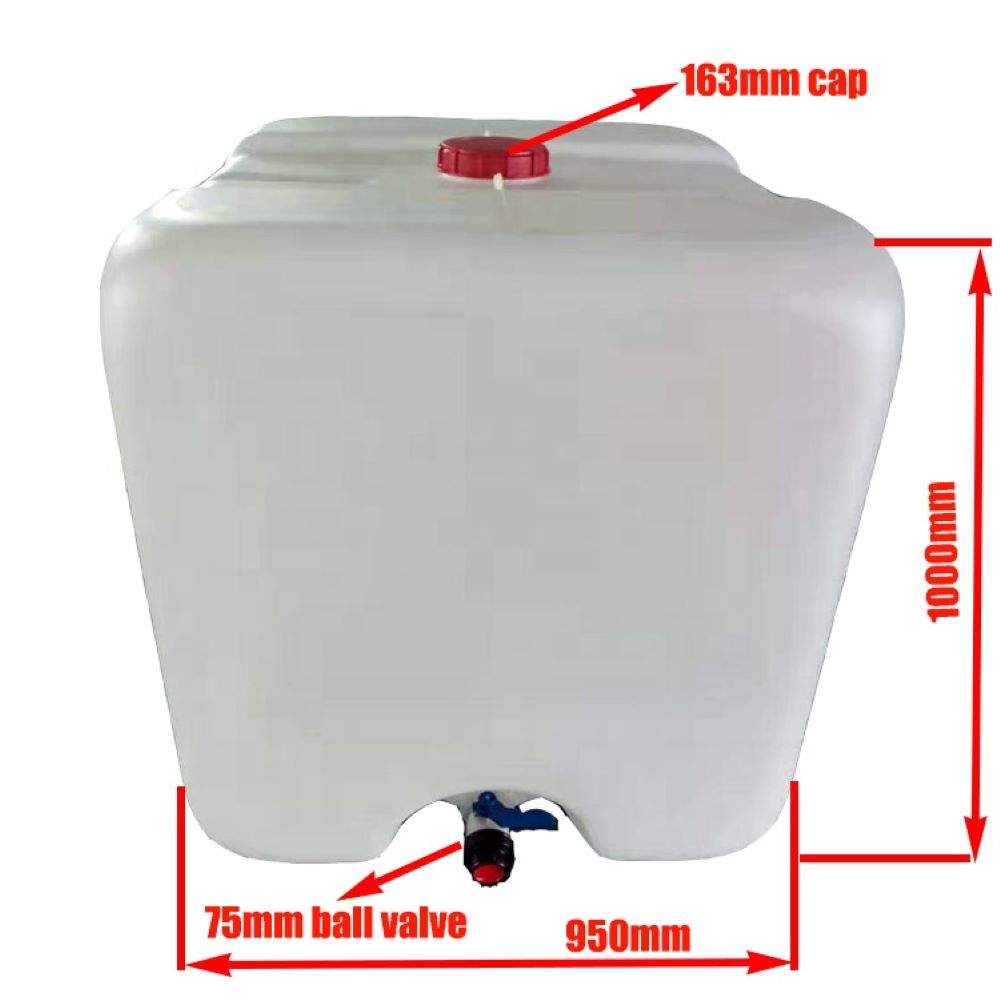

IBC tank dimensions — 1000 mm height, 950 mm width, 163 mm cap, 75 mm ball valve

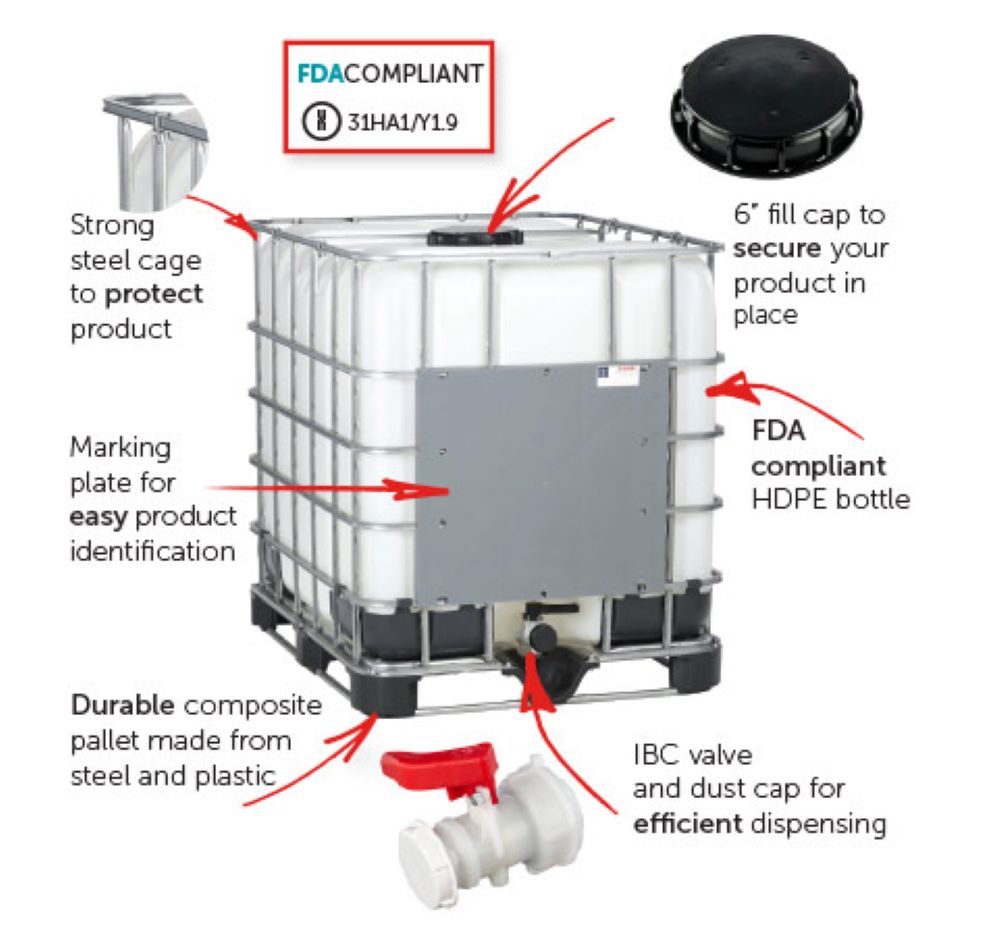

IBC tank construction — steel cage, FDA-compliant HDPE bottle, fill cap and dispensing valve

See It In Action

Product Videos

IBC Tank Blow Moulding Machine — 2 Layers

2-layer 1000 L IBC tank blow molding machine in production.

1000L 2-Layer IBC Tank — Manufacturing Process

Full manufacturing process of a 1000 L IBC tank inner bottle.

1000L 2-Layer IBC Tank Blow Molding Machine

Machine overview and cycle of the 1000 L IBC line.

Technical Data Set

Technical Specifications

Drive
Siemens
Layers
1 – 3 layer
Heating
Die-head & extruder induction heaters
Capacity
1000 ltr
L/D ratio
28:1
Platen size
1700w*1800h*90t mm
Servo motor
57 kw
Total power
426 kw
Availability
In Stock
Dual Product
L-ring drum & IBC tank on one machine
Molding Type
Extrusion Blow Molding
Productivity
20-25 pcs/h
Total weight
65 t
Clamping force
2000 kn
Automation Level
Fully Automatic
Blowing Capacity
1000L
Maximum mould size
1600w*1600h mm
Frequency converter
110 kw
Plasticity capacity
600 kg/h
Accumulator capacity
50 kg
Plasticizing Capacity
700kg/h
Die head heating power
60 kw
Max. Container Capacity
1000L
Distance between platens
1100-2500 mm

Applications

Chemical Transport

1000 L IBC tanks for bulk liquid chemicals.

Water & Liquid Storage

Caged IBC totes for water and process liquids.

Industrial Packaging

L-ring drums for 100–250 L industrial filling.

Food-Grade Handling

HDPE bottles suitable for food-grade applications.

Support

Frequently Asked Questions

What does the machine produce?
1000 L IBC tank inner bottles in 1 to 3 layers, and L-ring drums (100–250 L) on the same machine.
What is the output rate?
20–25 pieces per hour with fully automatic operation and a 700 kg/h plasticizing capacity.
What makes it energy efficient?
Die-head and extruder induction heaters, a servo motor and Siemens drive deliver power-saving operation compared with conventional lines.
