1–3 Layer Drum Blow Molding Line

Double L-Ring Drum Blow Molding Machine

A fully automatic extrusion blow molding line producing 100–250 litre double L-ring drums in 1 to 3 layers at 30 drums per hour — with induction heating, servo drives and Siemens control for power-saving operation.

View Specifications Request Quote
Double L-Ring Drum Blow Molding Machine
100–250 L

Product Overview

Double L-Ring Drum Blow Molding Machine

We are ranked amongst the foremost firms that are engaged in manufacturing, exporting and supplying a wide range of L ring drum Blow Molding Machine. Used to manufacture L ring drum moldings, this molding machine is designed by our workforce using topmost grade raw material and leading technology in tandem with the set norms. The molding machine offered by us is appreciated for its increased output, low maintenance cost and resistance to abrasion. Features: 200 Ltr upto 250 Ltr.. 1 to 3 Layer Machine.. Best drum Design..

The line molds 100–250 litre drums in 1 to 3 layers at about 30 pieces per hour, drawing on a 700 kg/h plasticizing system with 100–110 mm screws and 1800 kN clamping force. Die-head and extruder induction heaters, servo motors and a Siemens drive cut energy consumption, and the same machine can switch to other products in its size range — one investment covering the industrial packaging catalogue.

Drums

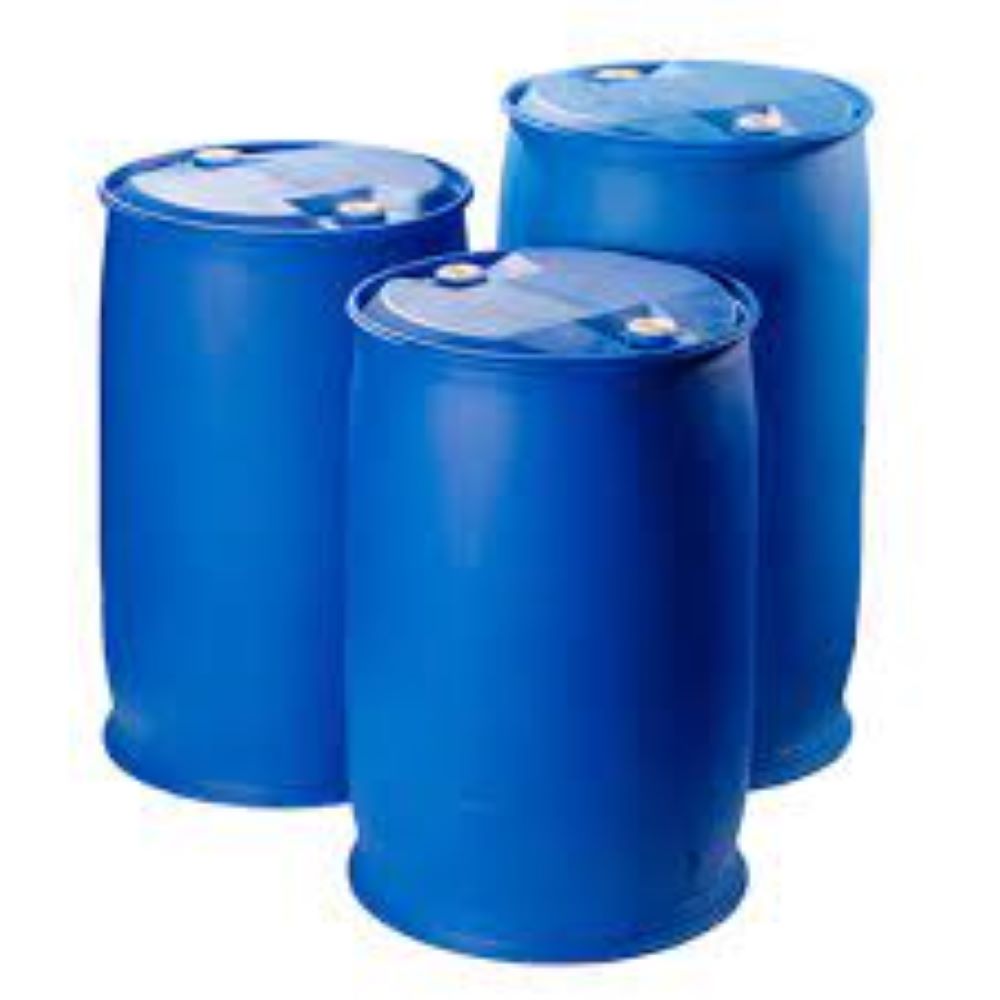

100–250 L Double L-Ring Drums

The double L-ring rim gives drums their stacking strength and handling durability — molded with the consistent wall thickness industrial packaging certification demands.

  • Double L-ring rim design
  • 100 to 250 litre sizes
  • UN-grade wall consistency
  • 30 drums per hour
100–250 L Double L-Ring Drums
Layers

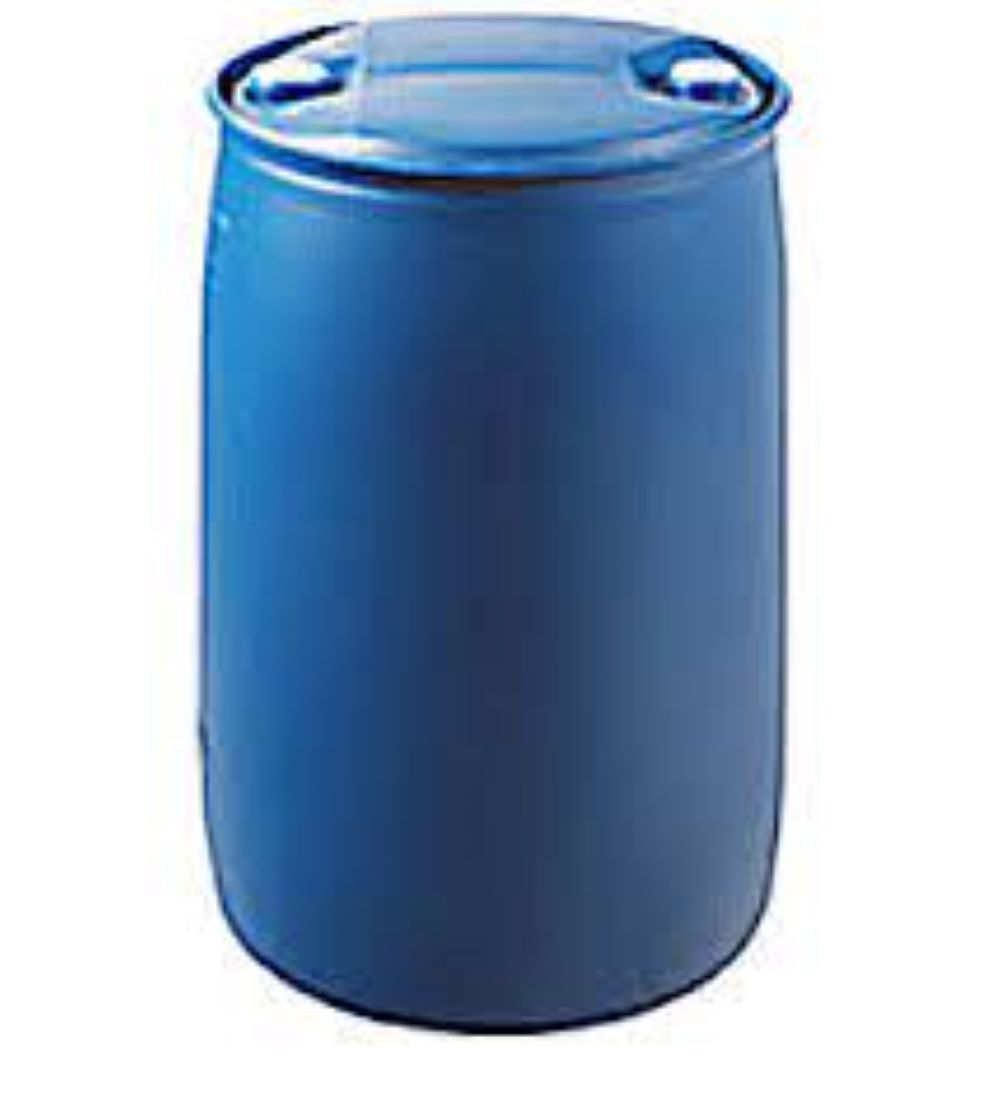

1–3 Layer Construction

Multi-layer capability lets drum makers combine virgin skins, recycled cores and barrier layers to hit chemical-resistance specs at the best material cost.

  • Single to triple layer
  • Barrier & recycled-core options
  • Even layer distribution
  • Colour layer combinations
1–3 Layer Construction
Efficiency

Induction Heating + Siemens Drive

Induction heating and servo drives cut the energy cost per drum compared with resistance-heated lines — the catalogue numbers a plant manager cares about.

  • Die-head induction heater
  • Extruder induction heater
  • Servo motor, power saving
  • Siemens drive & controller
Induction Heating + Siemens Drive

In Detail

Image Gallery

Double L-ring drum blow molding machine
Blue double L-ring drums produced on the machine
Double L-ring drum — stacked drums
Double L-ring drum blow molding machine catalogue

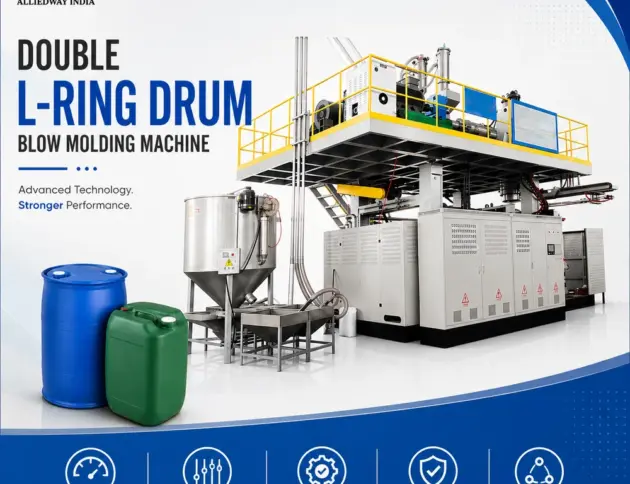

Fully automatic double L-ring drum blow molding machine

See It In Action

Product Videos

Double L-Ring Drum Blow Molding Machine

The drum line molding double L-ring drums.

Double L-Ring Drum Machine — Line View

Machine overview and drum takeoff.

210–250 L Drum Blow Molding Machine

Large-drum configuration in production.

Technical Data Set

Technical Specifications

Drive
Siemens
Phase
3 phase
Layers
1 – 3 layer
Heating
Die-head & extruder induction heaters
Screw Size
100 – 110 mm
Servo Motor
35.5 kW
Availability
In Stock
Molding Type
Extrusion Blow Molding
Productivity
≈ 30 pcs/h
Drum Capacity
100 – 250 L
Multi-Product
Yes — other products on same machine
Clamping Force
1800 kN
Installed Power
401.5 kW (≈100 kW consumption)
Automation Level
Fully Automatic
Accumulator Capacity
20 kg
Plasticizing Capacity
700 kg/h

Applications

Chemical Packaging

UN-spec drums for chemicals and solvents.

Lubricants & Oils

100–250 L drums for oil and lubricant filling.

Food-Grade Drums

HDPE drums for food ingredients and syrups.

Industrial Packaging Plants

The core line of a drum production plant.

Support

Frequently Asked Questions

What drum sizes can the machine make?
Double L-ring drums from 100 to 250 litres, in single to triple-layer construction, at roughly 30 drums per hour.
What makes it energy efficient?
Die-head and extruder induction heaters, servo motors and a Siemens drive — a power-saving package compared with conventional resistance heating.
Can it produce other products?
Yes — the machine is multi-product capable, so other containers in its size range can run on the same line with a mold change.
What are the key machine parameters?
700 kg/h plasticizing capacity, 100–110 mm screws, 1800 kN clamping force, 20 kg accumulator and three-phase power with about 100 kW consumption.
