Automatic Inner Wallet Folding & Packing

Surgical Glove Inner Wallet Packing Machine

A fully automatic line that folds surgical glove pairs into printed inner wallets at 40–65 packs per minute — with manual or automatic glove feeding and precise left/right pairing for sterile glove production.

View Specifications Request Quote
Surgical Glove Inner Wallet Packing Machine
40–65 packs/min

Product Overview

Surgical Glove Inner Wallet Packing Machine

This fully automatic machine folds sterile surgical glove pairs into their printed inner wallet — the paper wallet that keeps the left and right glove correctly cuffed and oriented for aseptic donning. It supports manual glove feeding as well as automatic feeding, letting glove plants match the line to their upstream process.

The line unwinds and creases wallet paper, places each glove pair on its printed panel, folds the wallet through successive stations and delivers finished packs at 40–65 per minute. Wallet sizes of 195–205 × 95–110 mm are covered, and the 10 kW line occupies a 9000 × 1540 × 1529 mm footprint. Paired with our outer pouch packing machine it forms a complete surgical glove packing line.

Folding

Precise L/R Wallet Folding

Successive folding stations place each glove pair on its printed panel and crease the wallet so gloves present correctly for sterile donning — the detail surgeons notice.

  • Printed L/R glove panels
  • Accurate cuff fold for aseptic donning
  • Consistent wallet creasing
  • 195–205 × 95–110 mm wallets
Precise L/R Wallet Folding
Feeding

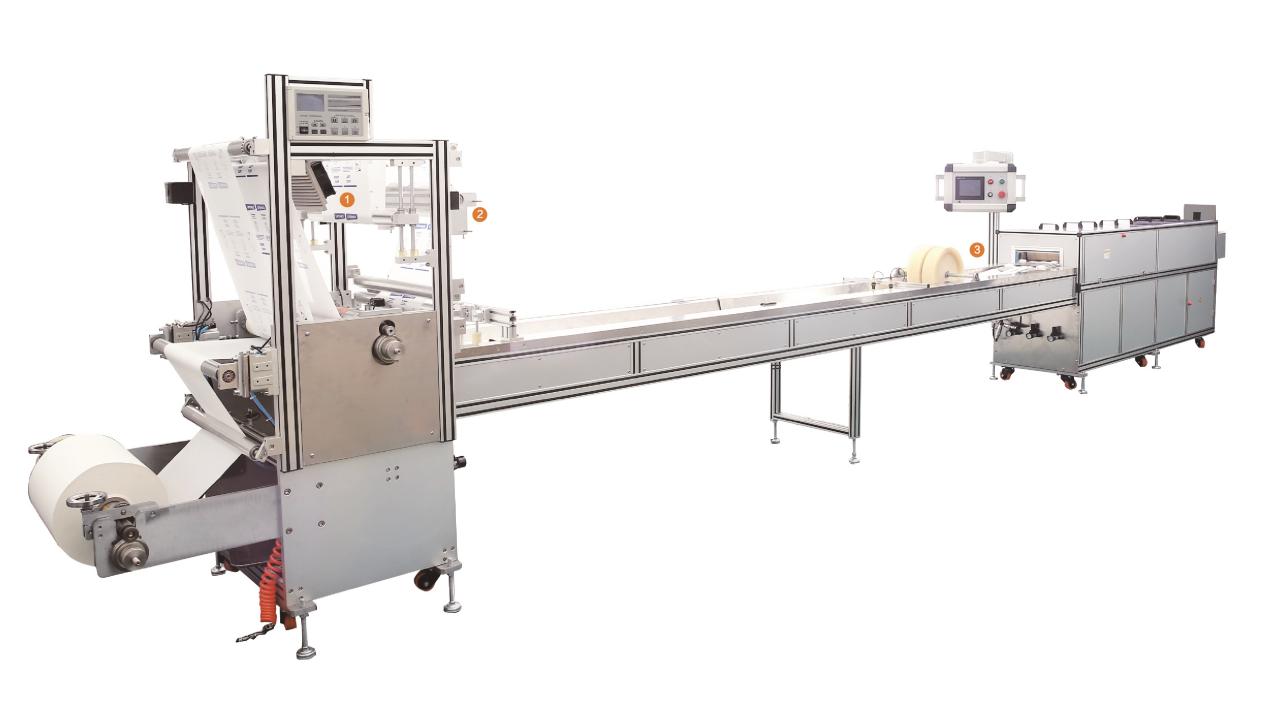

Manual or Automatic Feeding

Choose operator-fed stations or automatic glove feeding to match your upstream glove production, without changing the downstream wallet process.

  • Automatic glove feeding option
  • Manual feeding stations
  • Flexible line integration
  • 40–65 packs per minute
Manual or Automatic Feeding
Line

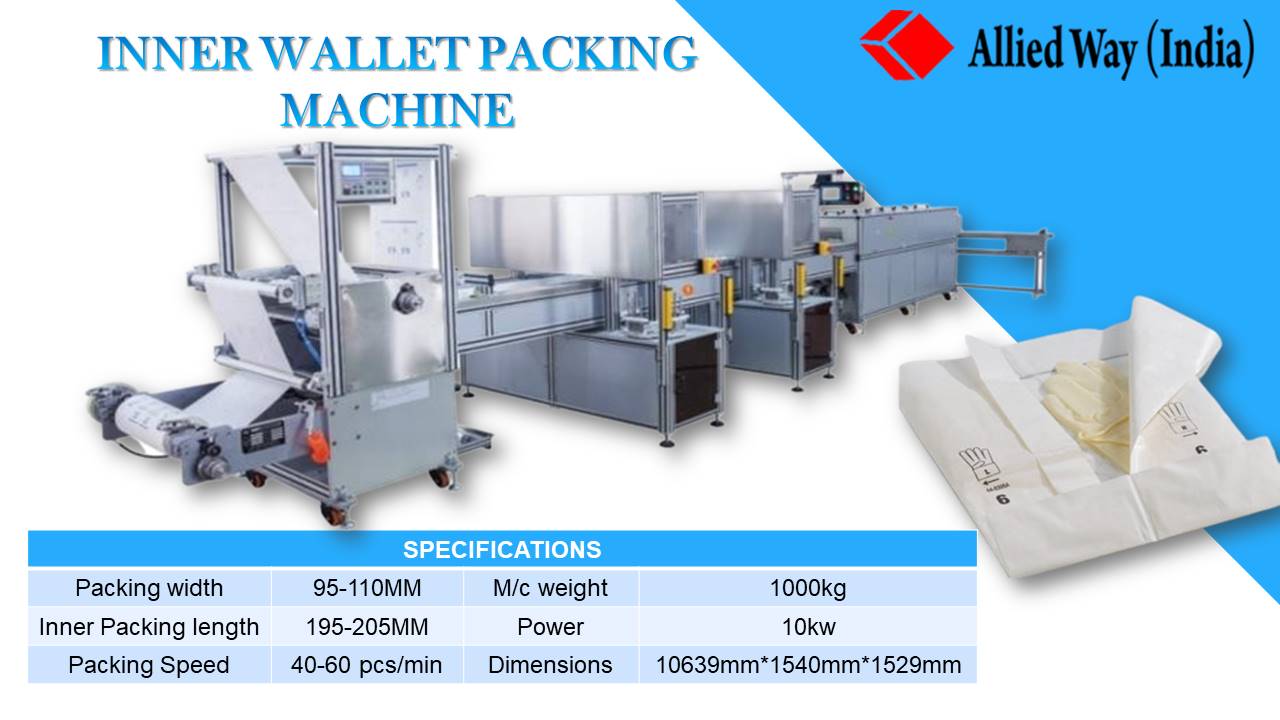

Complete Packing Line Ready

Finished wallets discharge in line with our glove outer pouch packing machine, forming a complete wallet-to-pouch surgical glove packaging system.

  • Feeds outer pouch machine directly
  • Aluminium-frame guarding
  • PLC + touch-screen control
  • Compact 9 m footprint
Complete Packing Line Ready

In Detail

Image Gallery

Surgical glove inner wallet packing machine — full line view
Inner wallet packing machine wallet forming and folding stations
Inner liner glove packing machine paper feed section
Inner wallet packing machine line with finished L/R glove wallets

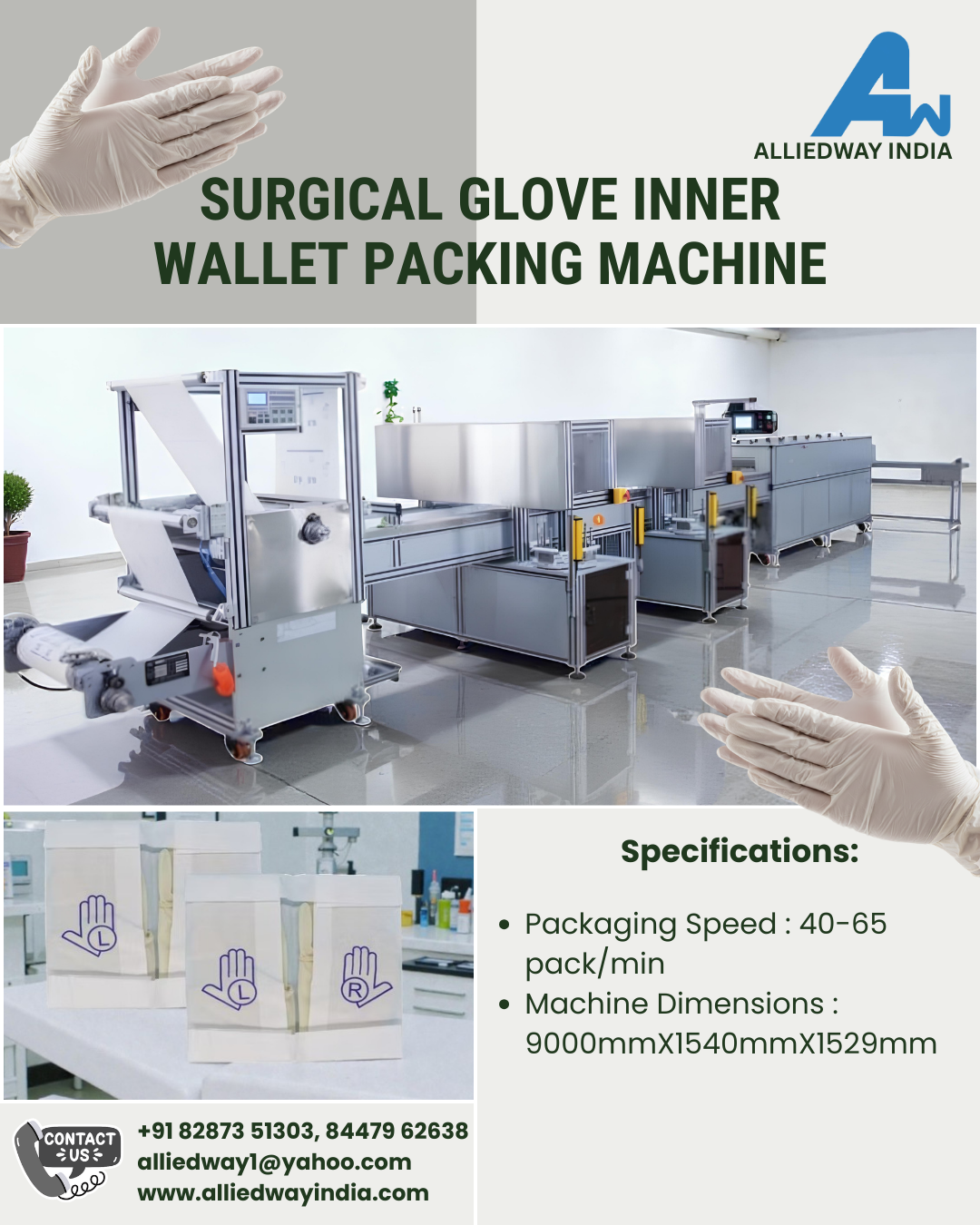

Surgical glove inner wallet packing machine catalogue

See It In Action

Product Videos

Inner Wallet Glove Packing Machine

Wallet folding and glove pairing stations in operation.

Glove Inner Wallet Packing Machine

Full line view from paper feed to finished wallets.

Technical Data Set

Technical Specifications

Dimensions
9000 × 1540 × 1529 mm
Pairs With
Glove outer pouch packing machine
Rated Power
10 kW
Air Pressure
0.6 – 0.8 MPa
Availability
In Stock
Machine Type
Fully Automatic
Wallet Width
95 – 110 mm
Glove Feeding
Manual or automatic
Wallet Length
195 – 205 mm
Packaging Speed
40 – 65 packs/min
Equipment Weight
≈ 2000 kg

Applications

Sterile Surgical Gloves

Inner wallet packing of latex and synthetic surgical glove pairs.

Aseptic Presentation

Cuffed L/R folding for correct aseptic donning technique.

Wallet-to-Pouch Lines

Feeds directly into outer pouch sealing for finished packs.

Glove Plants & Converters

Fits new glove plants or retrofit packing upgrades.

Support

Frequently Asked Questions

What does an inner wallet machine do?
It folds each sterile glove pair into a printed paper wallet that holds the left and right glove in the correct cuffed position, so the pack can then be sealed in an outer pouch and sterilized.
What speed does it achieve?
40–65 wallets per minute depending on wallet size and whether gloves are fed manually or automatically.
What wallet sizes are supported?
Wallet length 195–205 mm and width 95–110 mm, covering standard surgical glove sizes.
Can it work with the outer pouch machine?
Yes — it is designed to discharge wallets in line with our glove outer pouch packing machine, forming a complete automatic glove packing line.
