Complete PCB Module for Digital Thermometers

Thermometer PCB

A complete electronics module for clinical digital thermometers — PCB, thermistor sensor, LCD and battery contacts — measuring 32–42 °C with ±0.1 °C accuracy and a built-in fever alarm beeper.

View Specifications Request Quote
Thermometer PCB
±0.1 °C

Product Overview

Thermometer PCB

Digital thermometers are temperature-sensing instruments that are easily portable, have permanent probes, and a convenient digital display. The way a digital thermometer works depends upon its type of sensor. Sensor types include resistance temperature detector (RTD), thermocouple and thermistor.

Our module uses a precision thermistor sensor wired to a compact 5.35 mm-thick PCB driving a 21.5 × 7.5 mm LCD, powered by a single 1.5 V LR41 button cell. It reads 32–42 °C with ±0.1 °C (±0.2 °F) accuracy in about 60 seconds orally, sounds a fever alarm beeper, and weighs just 10.5 g — ready to assemble into an ABS body with steel probe tip.

Complete Kit

Every Component Included

The module ships as a complete electronics kit — board, sensor, display and contacts — so thermometer assembly becomes a simple mechanical operation.

  • PCB with LCD and beeper
  • Thermistor probe assembly
  • Battery contacts & button
  • Fits standard ABS housings
Every Component Included
Accuracy

Clinical ±0.1 °C Precision

Calibrated thermistor measurement delivers the accuracy clinical thermometers require, reading oral temperature in about a minute.

  • 32–42 °C clinical range
  • ±0.1 °C / ±0.2 °F accuracy
  • ~60 s oral measurement
  • Repeatable thermistor sensing
Clinical ±0.1 °C Precision
Low Power

Runs on One Button Cell

Efficient electronics run the display, measurement and fever alarm from one LR41 cell, keeping the finished thermometer light and inexpensive.

  • Single 1.5 V LR41 battery
  • Auto fever alarm beeper
  • 10.5 g total weight
  • Long battery life
Runs on One Button Cell

In Detail

Image Gallery

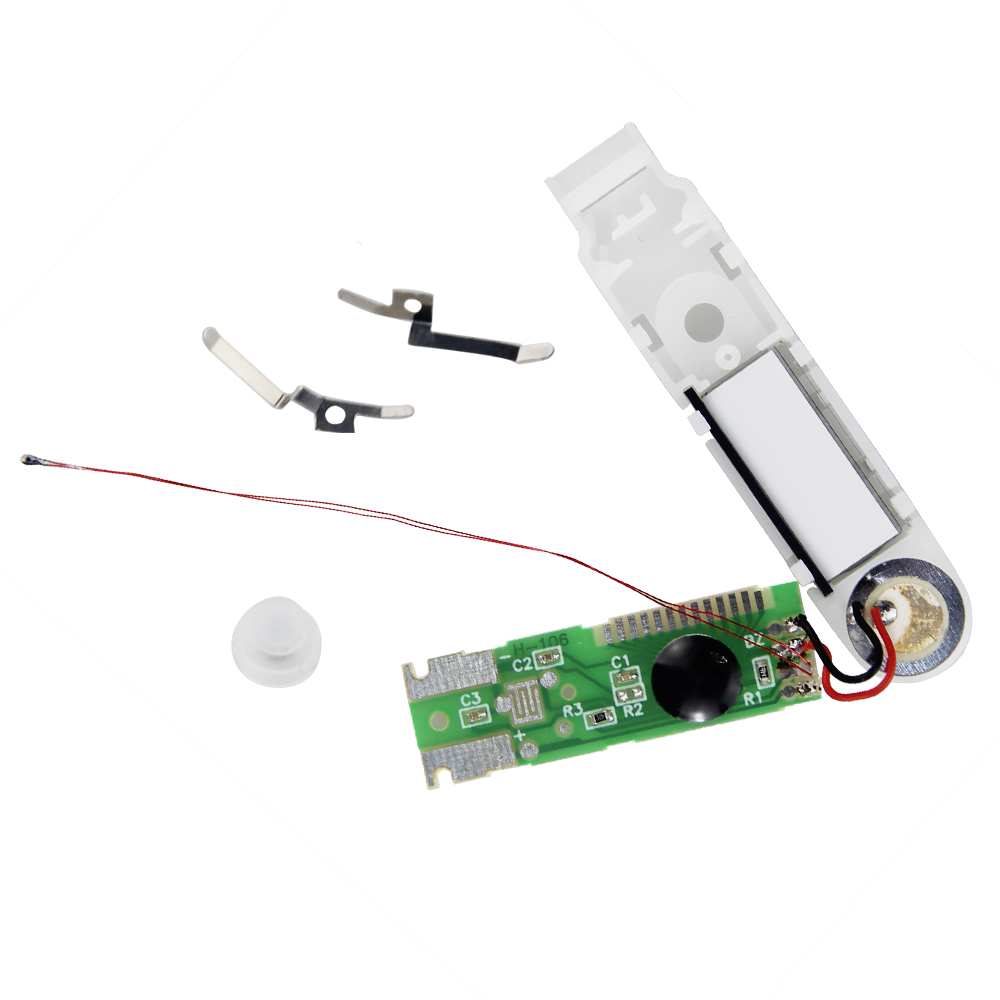

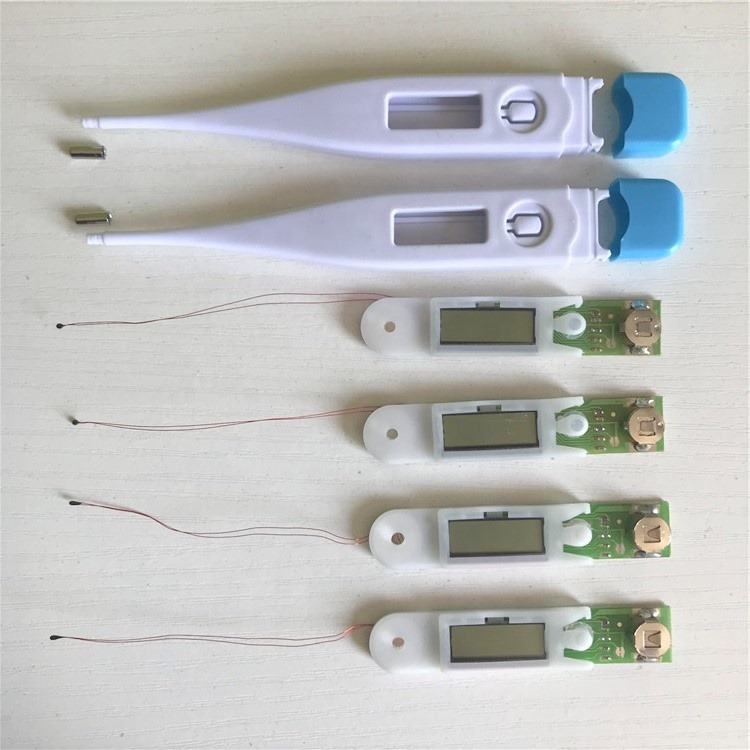

Digital thermometer PCB module kit — board, thermistor probe, LCD, contacts and housing

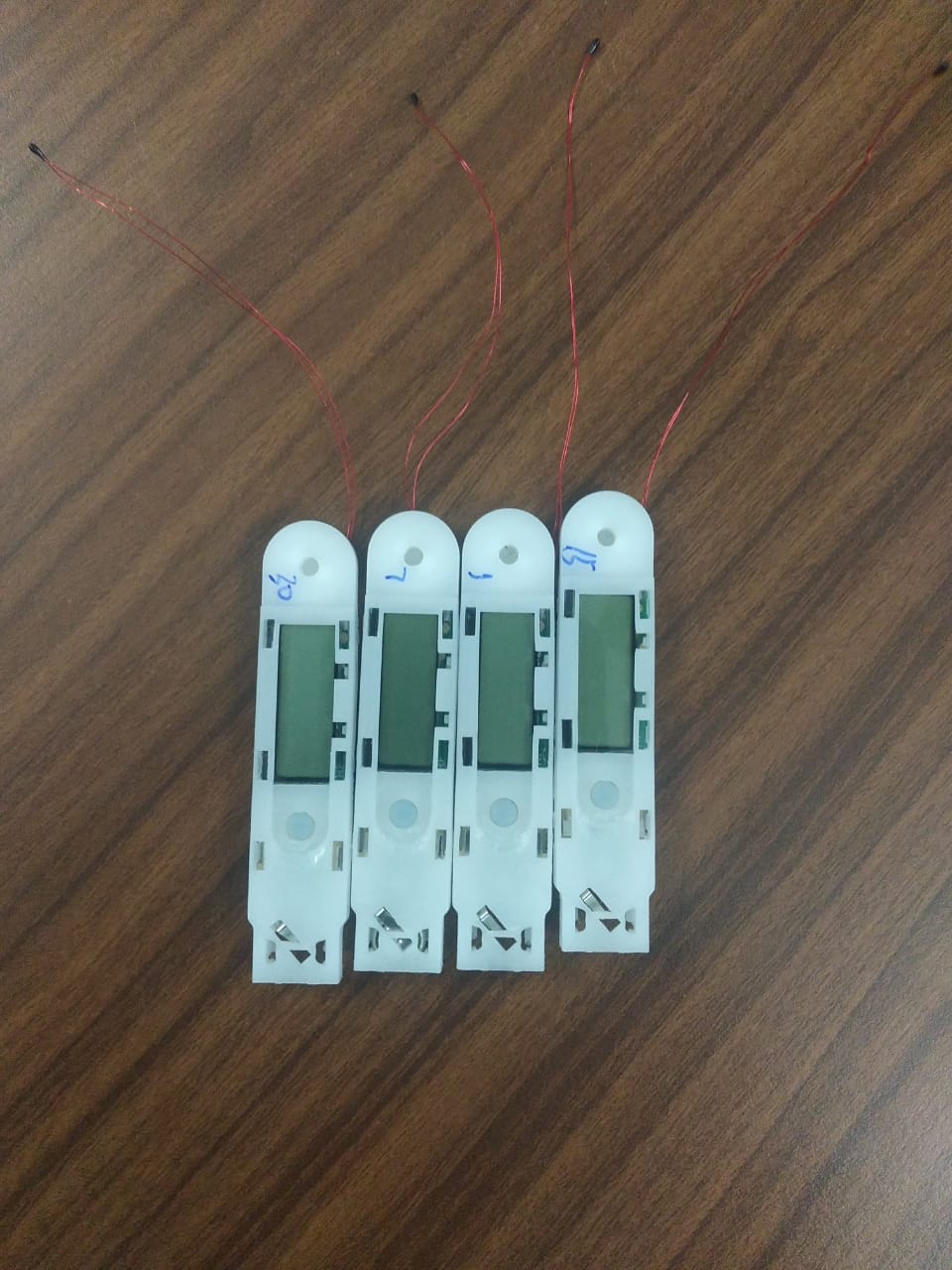

Assembled digital thermometer modules with LCD and thermistor probes
Digital thermometer PCB with LCD display

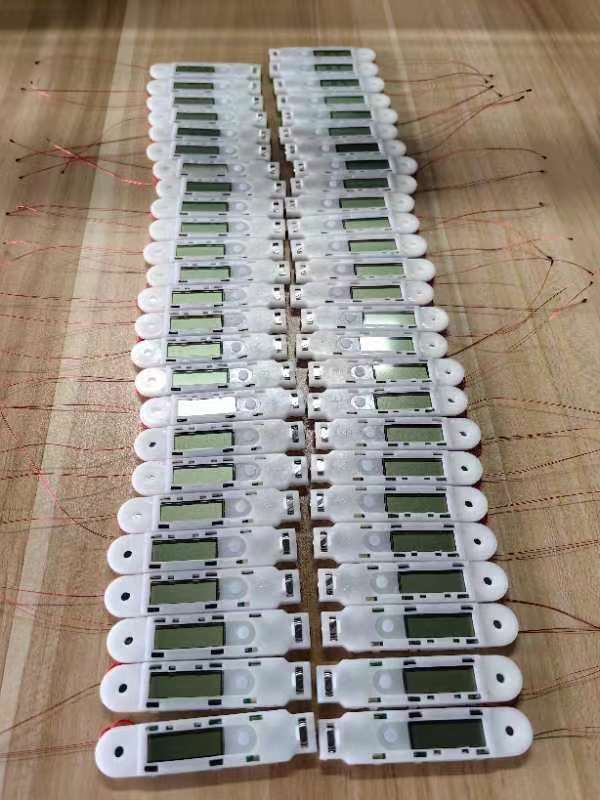

Thermometer PCB detail view

See It In Action

Product Videos

Thermometer PCB Solutions

Digital thermometer PCB module overview.

PCB for Digital Thermometer

Board, sensor and LCD module in detail.

Technical Data Set

Technical Specifications

Power
1.5 V LR41 button battery
Beeper
Fever alarm
Sensor
Thermistor with steel probe tip
Weight
10.5 g
Display
21.5 × 7.5 mm LCD
Accuracy
± 0.1 °C / ± 0.2 °F
Availability
In Stock
Product Type
Thermometer PCB module (PCBA + sensor + LCD)
Body Material
ABS + steel tip
PCB Thickness
5.35 mm
Measurement Time
60 ± 10 s oral; 100+ s underarm
Measurement Range
32 – 42 °C

Applications

Clinical Thermometers

Core module for oral and underarm digital thermometers.

Home Fever Screening

Accurate, beeper-alerted readings for family use.

Hospitals & Clinics

Dependable temperature measurement at scale.

OEM Assembly

Complete module for thermometer manufacturers.

Support

Frequently Asked Questions

What does the module include?
A complete electronics set: the PCB with LCD and fever-alarm beeper, thermistor probe with steel tip, battery contacts and button — everything except the plastic housing.
How accurate is it?
±0.1 °C (±0.2 °F) across the 32–42 °C clinical range, with a fever alarm beeper that sounds at elevated temperature.
How fast does it measure?
About 60 ± 10 seconds orally, and 100+ seconds under the armpit.
What battery does it use?
A single 1.5 V LR41 button cell; the complete module weighs only 10.5 g.
