Assembled PCBA for Blood Pressure Monitors
Blood Pressure Monitor PCB
Production-ready circuit boards for digital BP monitors — MCU, pressure sensor, display and speaker drive assembled with SMT, DIP and soldering technology, measuring 0–300 mmHg with ±0.03 pressure accuracy.
Product Overview
Blood Pressure Monitor PCB
It is circuit boards assembled with electronic components such as diode, transmitter, capacitors, resistors, and ICs with SMT, DIP, and soldering assembly technology. BP monitors are a vital part of healthcare, and have become an important product for hypertension patients as they need to measure their blood pressure regularly.
Each PCBA carries the microcontroller, pressure sensor, pump and valve drivers, LCD interface and speaker output of a complete upper-arm BP monitor, with a micro-USB port for power and data. Boards are assembled and soldered under process control, then function-tested for measurement accuracy across the 0–300 mmHg pressure and 30–180 bpm pulse range — ready to drop into your monitor housing.
Everything On One Board
The PCBA integrates sensing, control, display and audio in one tested module — device makers only add the cuff, pump and housing.
-
MCU + pressure sensor on board -
Pump & valve drive circuits -
LCD and speaker interfaces -
Micro-USB power/data port

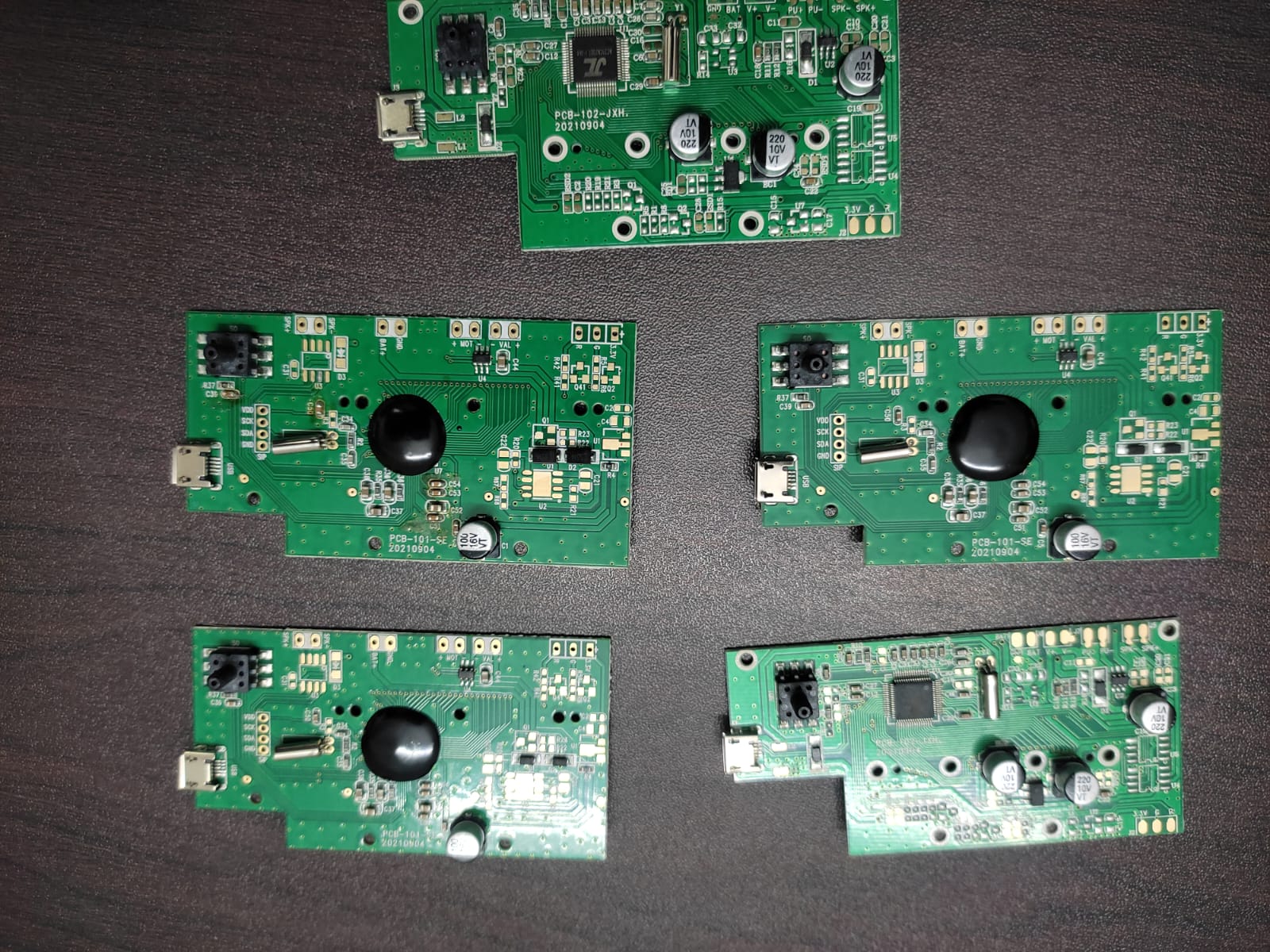

Clinical-Grade Measurement
Calibrated pressure sensing and proven oscillometric measurement firmware deliver repeatable readings hypertension patients can rely on.
-
0–300 mmHg pressure range -
30–180 bpm pulse range -
±0.03 pressure accuracy -
100–120 s measurement cycle

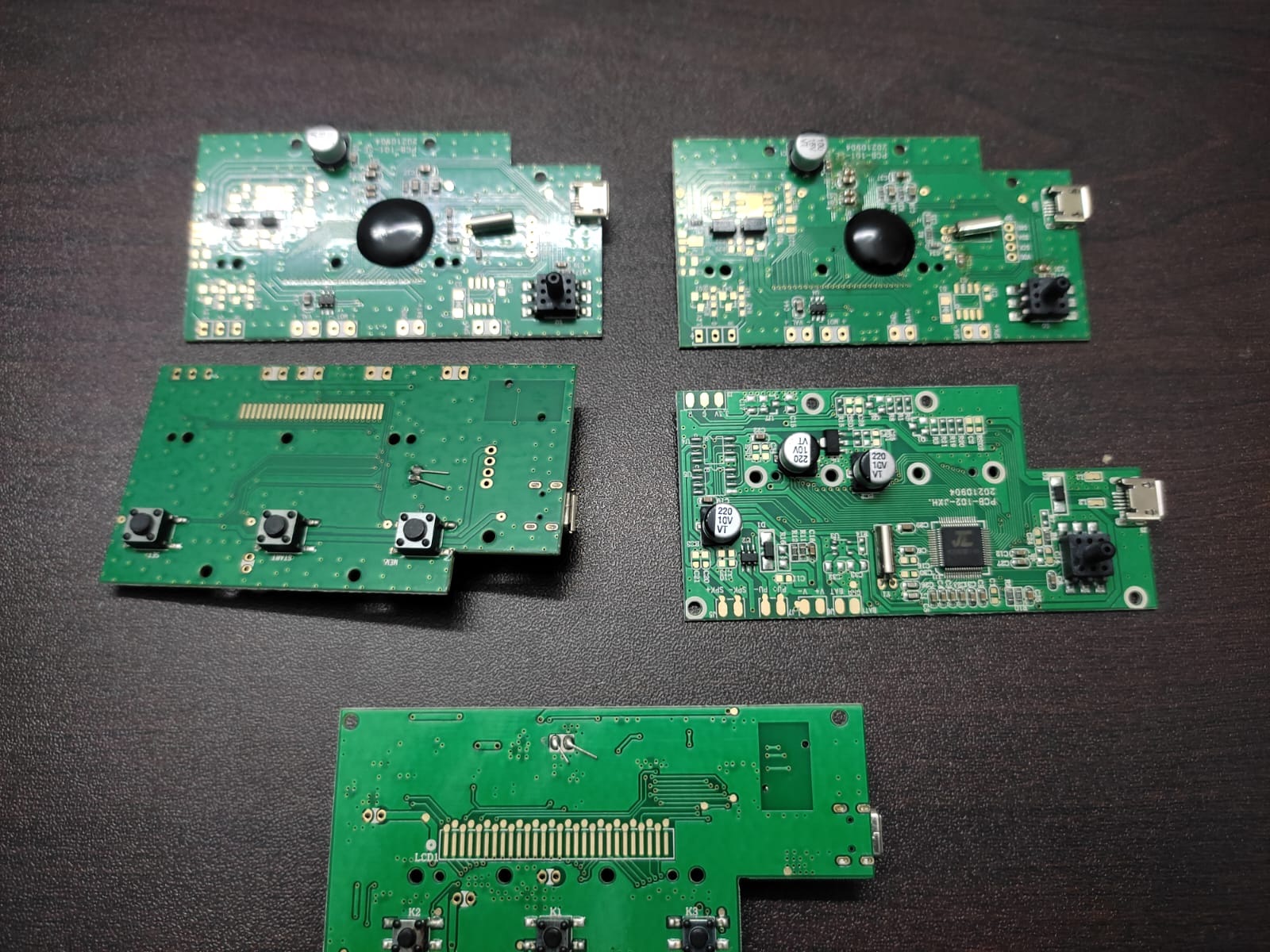

Built for Device Manufacturers
Supplied as a consistent, function-tested PCBA in production volumes, so BP monitor brands can scale assembly without managing electronics production.
-
SMT + DIP volume assembly -
100% function testing -
Stable long-term supply -
Supports OEM customisation
In Detail
Image Gallery
See It In Action
Product Videos
Blood Pressure Monitor PCB
Assembled BP monitor PCBA overview.

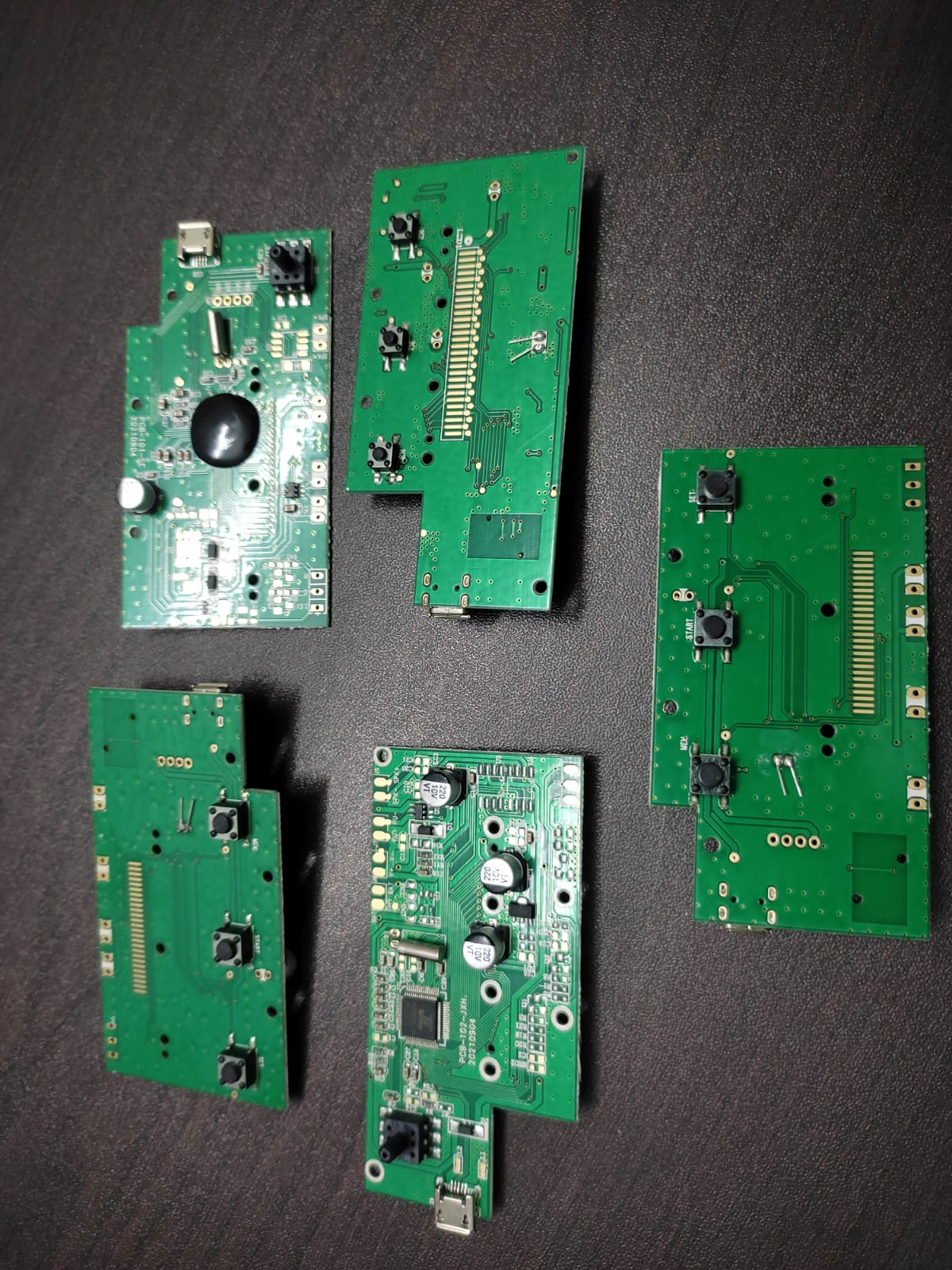

PCB for Digital Blood Pressure Monitor
Circuit board for digital BP monitors in detail.
Technical Data Set
Technical Specifications
Applications
Digital BP Monitors
Core electronics for upper-arm automatic BP monitors.
OEM Device Assembly
Drop-in PCBA for monitor brands and assemblers.
Clinical Equipment
Hospital-grade measurement electronics.
Home Health Devices
Reliable electronics for daily home monitoring.
Support
Frequently Asked Questions
What is included on the PCB?
What measurement performance does it deliver?
Who is this product for?
Are the boards tested?
Request a Quote
Connect with our engineering team for detailed technical specifications, tailored configurations, and volume pricing on our Blood Pressure Monitor PCB range — with expert support from selection through delivery and after-sales service.
-
Rigorous in-house quality control -
Global logistics and customs support -
Material traceability and COA provided
