Automatic IV / Infusion Set Assembly
IV Set Machine

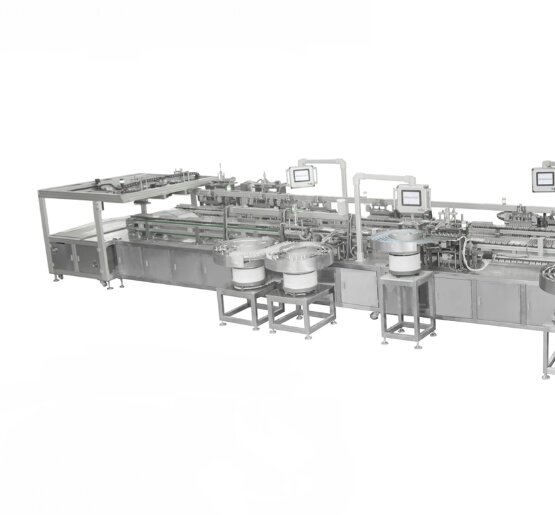

A fully automatic IV set assembly line that builds complete intravenous infusion sets — drip chamber, filter, flow regulator, roller clamp and latex/tip connections — at up to 4,000 pieces per hour.
Product Overview

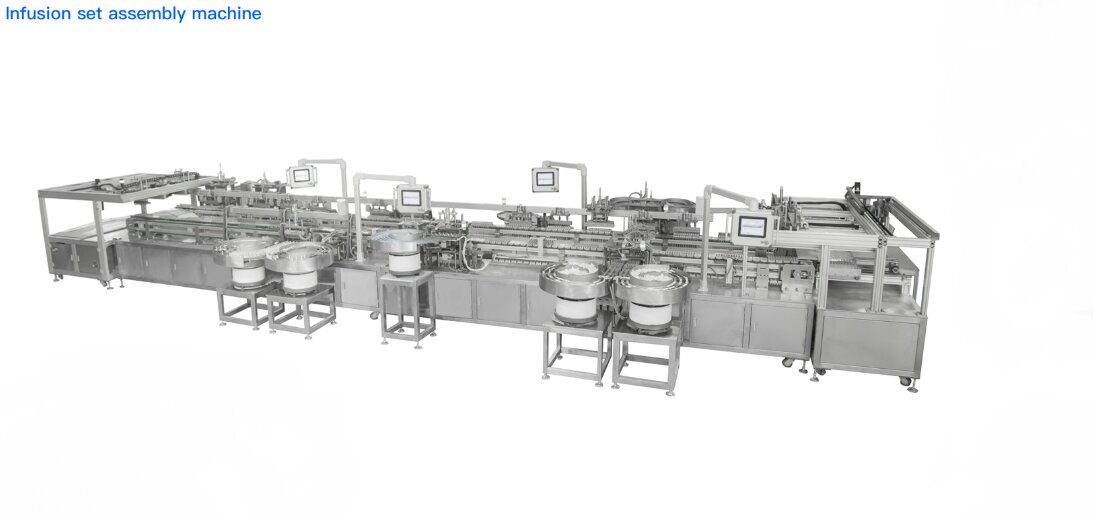

Automatic Infusion (IV) Set Manufacturing
Allied Way's fully automatic IV Set Assembly Machine builds complete intravenous infusion sets in a single integrated line, combining multiple bowl-feeder stations to deliver consistent, high-throughput output for disposable medical device manufacturers.
Modular assembly stations — chamber (with or without vent), disc filter, flow regulator and roller clamp, and latex rubber & tip — can be configured to match your infusion-set design, from 4-part long-tube sets to 6-part chamber assemblies.

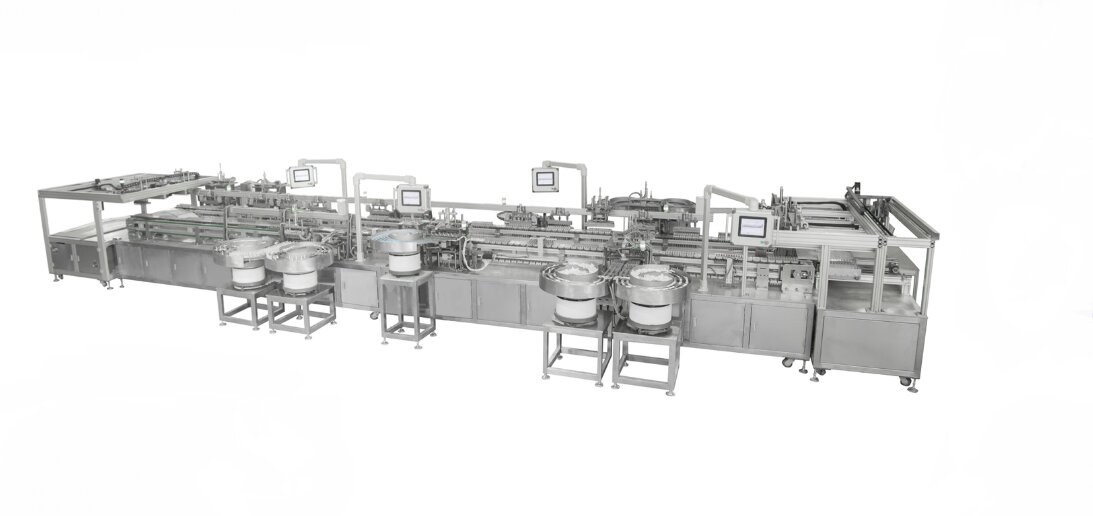

Chamber & Filter Assembly
Automatic assembly of the drip chamber (with or without vent) and disc fluid filter — the heart of the infusion set.
-
Drip chamber assembly (vented / non-vented) -
Disc filter insertion -
High-speed bowl-feeder stations -
Consistent, leak-tested joints

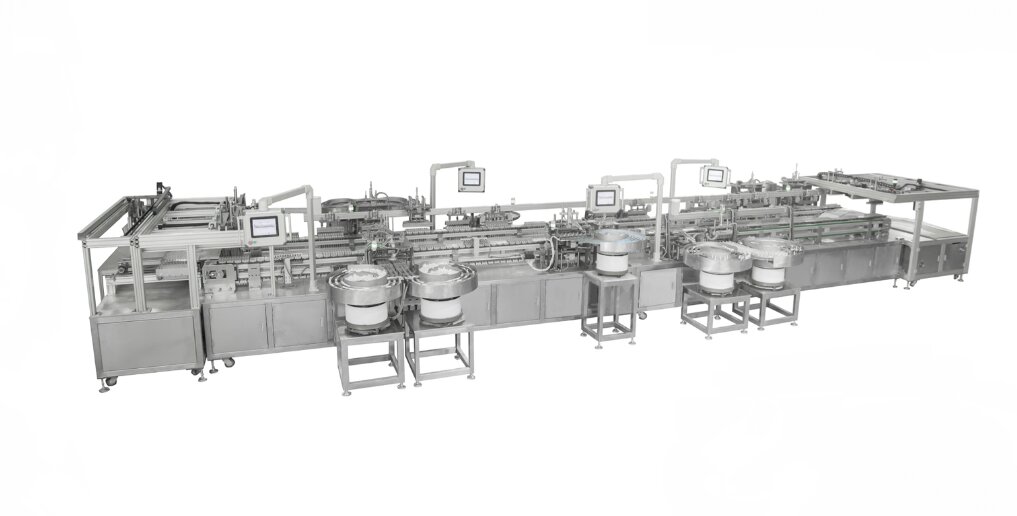

Regulator & Roller Assembly
Assembles the flow regulator and roller clamp that control the infusion rate.
-
Roller clamp assembly -
Flow regulator fitting -
Precise, repeatable placement -
Modular add-on station

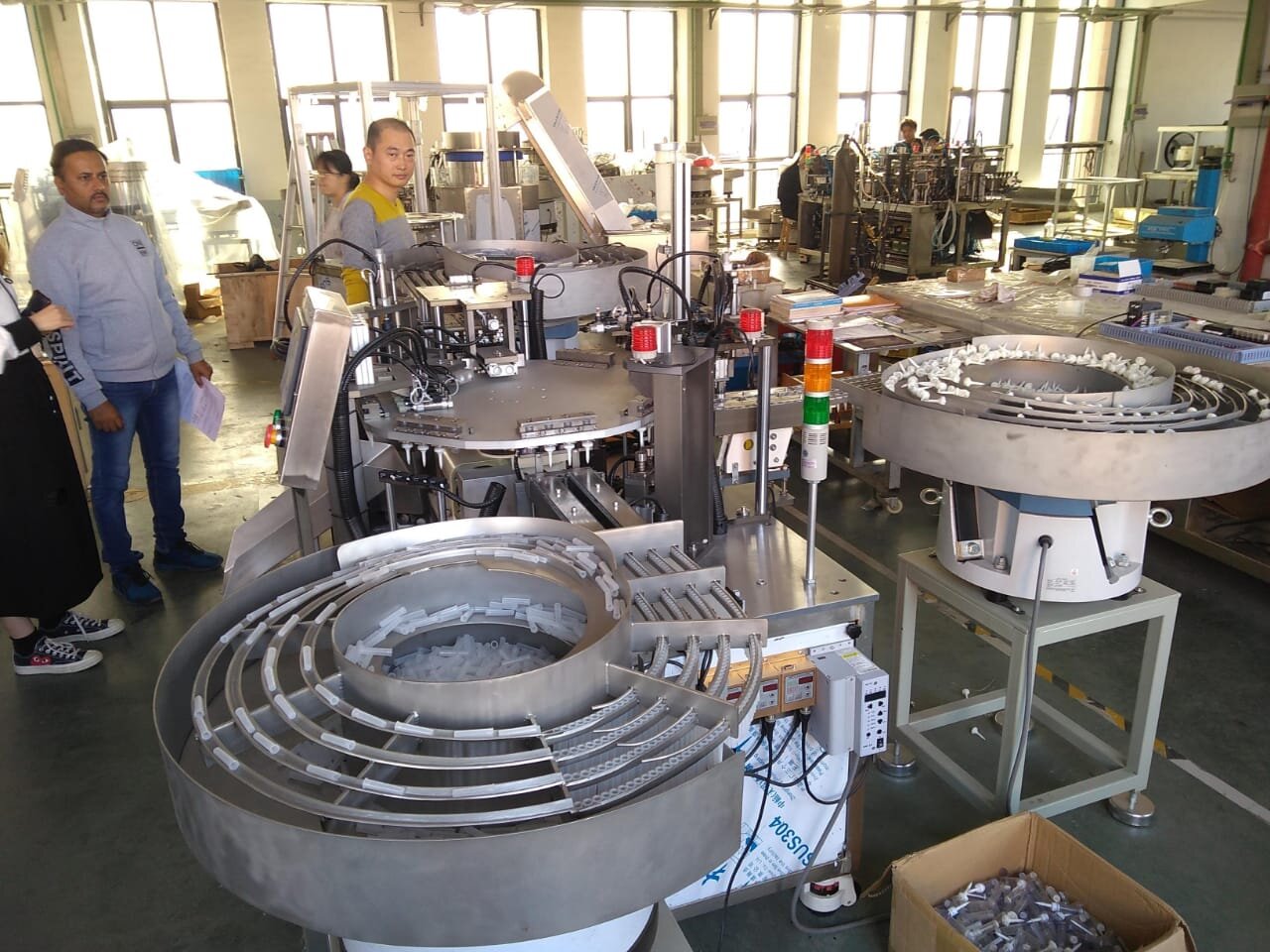

Latex Rubber & Tip Assembly
Fits the latex injection port and the connector tip/spike to complete the set.
-
Latex rubber / injection site -
Tip & spike connection -
4-part long-tube set support -
End-to-end automated line
In Detail
Image Gallery
See It In Action
Product Videos
IV Infusion Set Automatic Assembly Machine
Fully automatic assembly of IV infusion sets, from components to finished set.
Non-Vented IV Infusion Set Production Line
Complete production line for non-vented IV infusion sets.
Blister Packaging Machine for Blood Dialysis Tubing Set
Blister packaging of dialysis tubing sets produced on the line.
Technical Data Set
Technical Specifications
Applications
Disposable IV Sets
High-volume intravenous infusion set assembly.
Blood Transfusion Sets
Assembly of transfusion and blood administration sets.
Medical Device Plants
Turnkey infusion-set production for manufacturers.
Sterile Single-Use Devices
Consistent, sterile-ready single-use IV components.
Support
Frequently Asked Questions
What does the machine assemble?
What is the output capacity?
What are the power and space requirements?
Which assembly stations are available?
What is the warranty?
Request a Quote
Connect with our engineering team for detailed technical specifications, tailored configurations, and volume pricing on our IV Set Machine range — with expert support from selection through delivery and after-sales service.
-
Rigorous in-house quality control -
Global logistics and customs support -
Material traceability and COA provided
