Automatic Needle Assembly Line

Needle Assembly Machine

A fully automatic needle assembly machine that assembles hypodermic, insulin, blood-collection and pen needles at up to 70,000 pieces per hour across the 16G–26G range.

View Specifications Request Quote
Needle Assembly Machine
70,000 pcs/hr

Product Overview

High-Speed Automatic Needle Assembly

Allied Way's automatic needle assembly machine joins the stainless-steel cannula to the plastic hub and cap in a single high-throughput line, delivering consistent, precise disposable needles for medical manufacturers.

It handles disposable hypodermic needles, insulin syringe needles, blood-collection needles and pen needles, with an optional double-cannula loading station to further increase output.

Multi-Needle

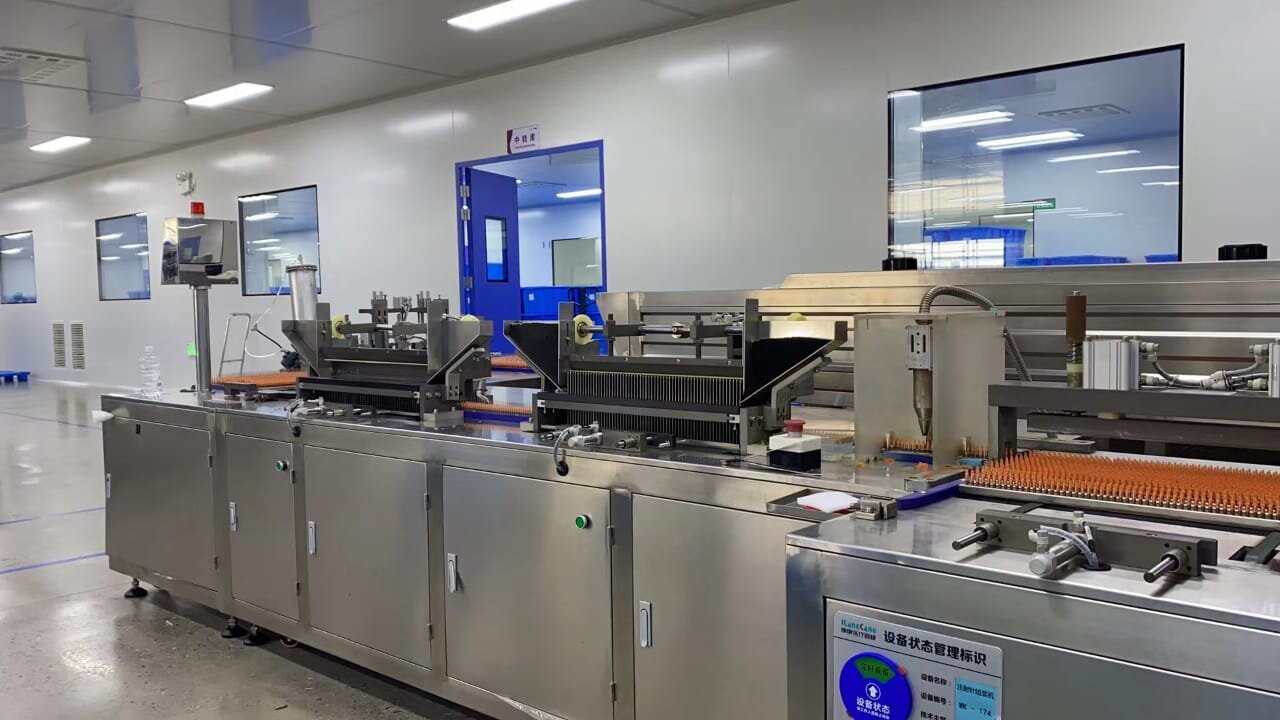

Assembles Every Needle Type

One line for hypodermic, insulin, blood-collection and pen needles.

  • Disposable hypodermic needles
  • Insulin syringe needles
  • Blood-collection needles
  • Pen needles
Assembles Every Needle Type
High Throughput

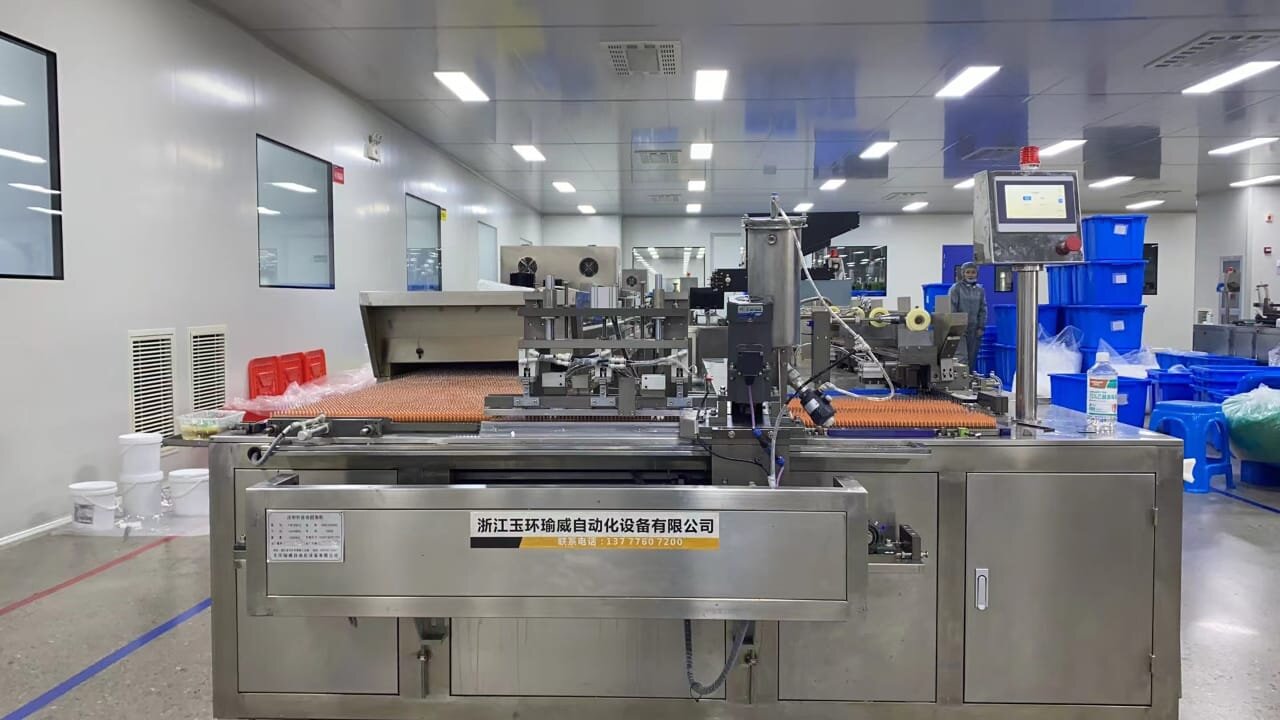

70,000 Pieces per Hour

A high-speed jig system delivers mass production with just two operators.

  • 68,000–70,000 pcs/hr
  • 60-pin jig, 420 pcs
  • 16G–26G gauge range
  • Only 2 operators required
70,000 Pieces per Hour
Optional

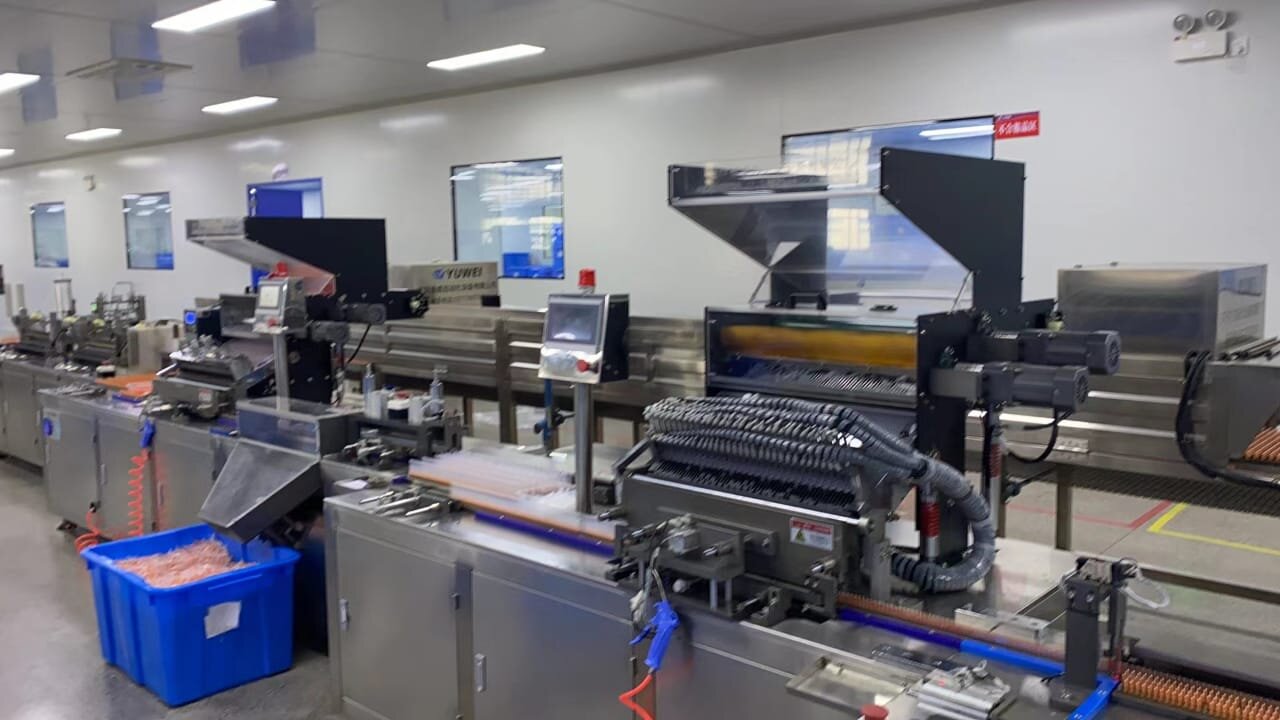

Double-Cannula Loading

An optional double-cannula loading station raises output even further.

  • Optional double loading station
  • Stainless-steel construction
  • ≥0.6 MPa air supply
  • 380V / 50–60Hz power
Double-Cannula Loading

In Detail

Image Gallery

Automatic needle assembly machine
Needle assembly machine line
Needle assembly machine detail
Needle assembly machine

See It In Action

Product Videos

Needle Assembly Machine — Working Mechanism

See the hub feeding, cannula insertion and gluing stations in action.

Needle Assembly Machine — Complete Process

End-to-end needle assembly from components to packed needles.

Blood Collection Needle Assembly Machine

Automatic assembly of blood collection needles.

Technical Data Set

Technical Specifications

Jig
60-pin, 420 pcs
Power
13 kW
Weight
3000 kg
Voltage
380V (50/60 Hz)
Air Pressure
≥0.6 MPa
Air Consumption
1500 ml/min
Applicable Range
16G – 26G
Automation Grade
Fully Automatic
Machine Dimensions
11.5 × 3.3 × 1.8 m
Operators Required
2
Production Capacity
68,000 – 70,000 pcs/hr

Applications

Disposable Syringes

Needles for disposable hypodermic syringes.

Insulin Pens & Syringes

Fine insulin syringe and pen needles.

Blood Collection

Blood-collection and sample needles.

Safety Needles

Sterile single-use safety needle assembly.

Support

Frequently Asked Questions

What needle types can it assemble?
Disposable hypodermic needles, insulin syringe needles, blood-collection needles and pen needles, across the 16G–26G gauge range.
What is the production capacity?
Up to 68,000–70,000 pieces per hour using a 60-pin jig (420 pcs), operated by two workers.
What are the power and air requirements?
13 kW at 380V (50/60 Hz), with air consumption of 1500 ml/min and working air pressure ≥0.6 MPa.
What is the machine footprint?
Approximately 11.5 × 3.3 × 1.8 m, weighing around 3000 kg.
Is a higher-output option available?
Yes — an optional double-cannula loading station further increases throughput.
