Automatic Infusion Set Assembly Line

Infusion Set Making Machine

A fully automatic assembly system producing 5,000–5,500 medical-grade infusion sets per hour — precision component feeding, assembly and testing on a single-phase 220 V, 8 kW line.

View Specifications Request Quote
Infusion Set Making Machine
5000–5500 pcs/h

Product Overview

Infusion Set Making Machine

Our IV Set Assembly Machine is a high-performance, fully automatic system designed for precision manufacturing of medical-grade infusion sets. This advanced IV Infusion Set Machine is ideal for companies looking for reliable, high-speed, and hygienic production solutions. Also known as an IV Set Manufacturing Machine, IV Set Making Machine, or Intravenous Infusion Set Manufacturing Machine, this equipment integrates all essential assembly processes into a single seamless IV Infusion Set Production Line. Production Capacity: up to 4000 sets per hour, fully automatic operation, high-speed precision-controlled system, reduced manual labor requirement.

Assembly

Every Component, One Line

Vibratory feeders and servo assembly stations put together the complete infusion set — spike, chamber, tubing, clamp and connectors — without manual touch.

  • Drip chamber & spike assembly
  • Roller clamp & tube joining
  • Latex tube and connector fitting
  • Automatic component feeding
Every Component, One Line
Output

5,500 Sets an Hour

High-speed stations with inline checking keep hygienic, consistent output at volumes that supply national distribution.

  • 5,000–5,500 pcs/h capacity
  • Stable continuous operation
  • Low reject rate
  • Inline quality checks

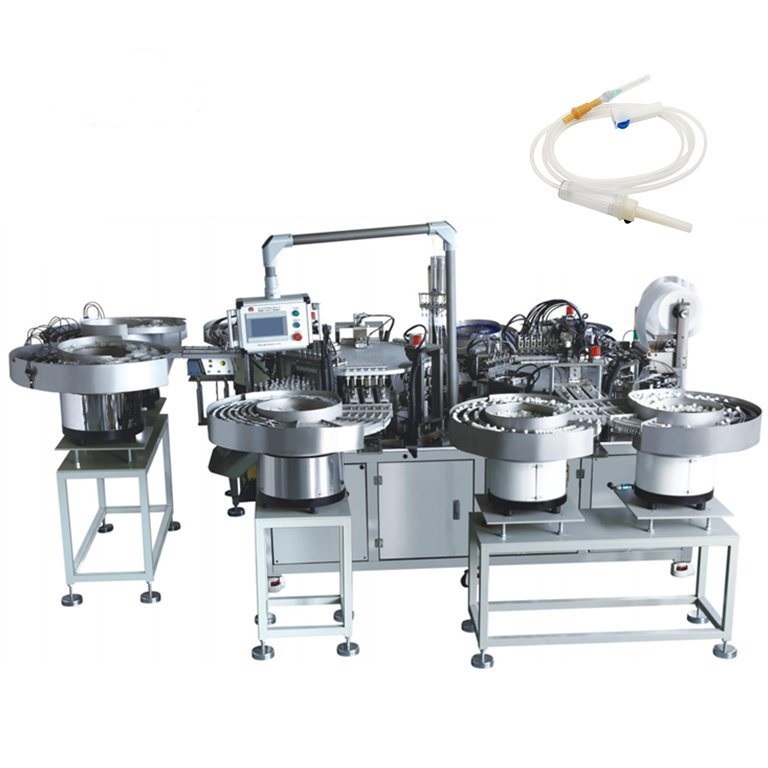

5,500 Sets an Hour
Economical

Single-Phase, 8 kW

Modest power and space requirements make the line practical for medical device plants of any size.

  • 220 V single-phase supply
  • ≈8 kW power consumption
  • 3 × 3.6 m footprint
  • About 1800 kg

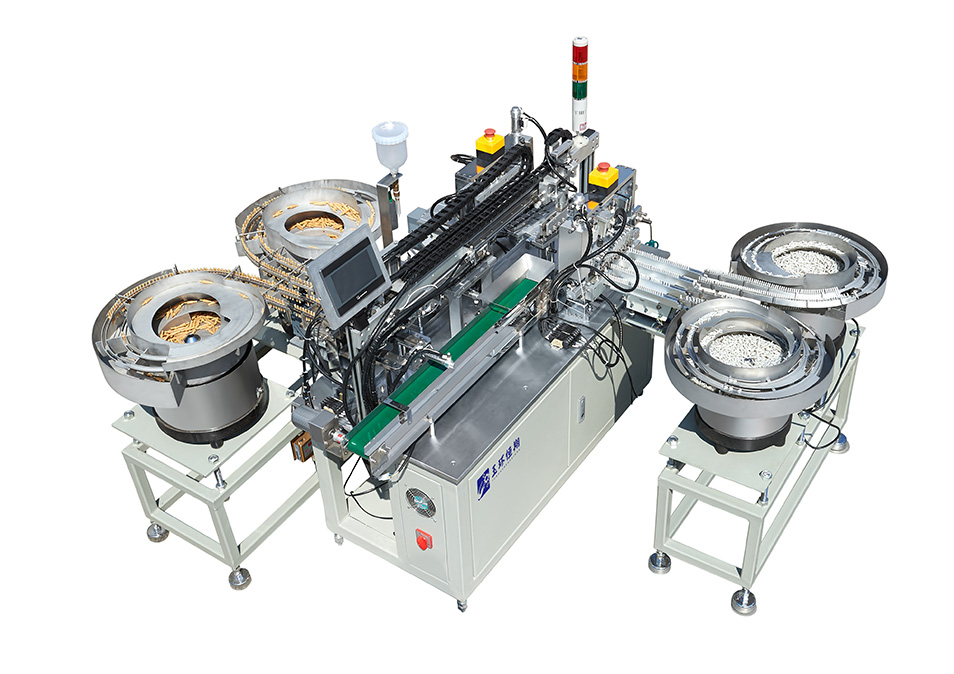

Single-Phase, 8 kW

In Detail

Image Gallery

Infusion set making machine — automatic IV set assembly line

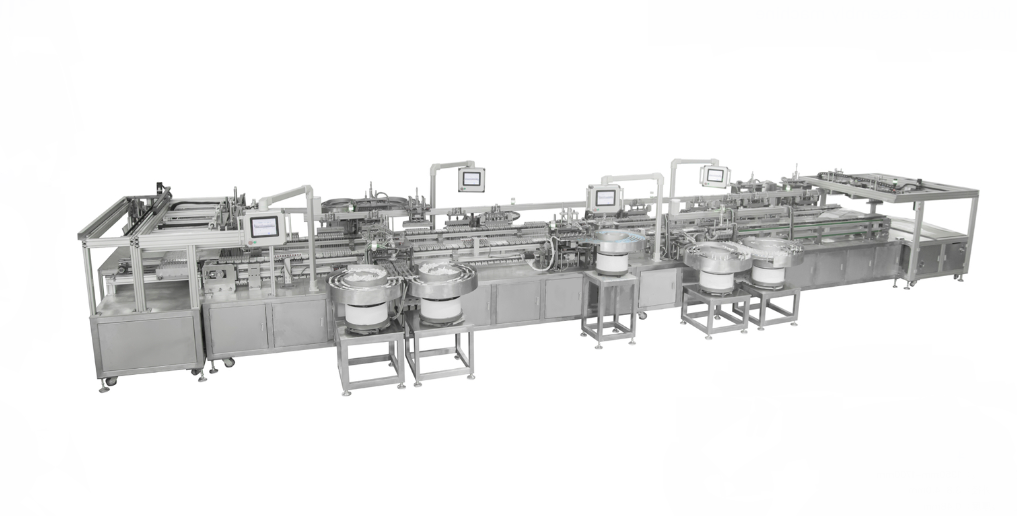

IV set assembly line with vibratory part feeders
Infusion set assembly machine with the finished IV set it produces
Automatic assembly machine for infusion set components

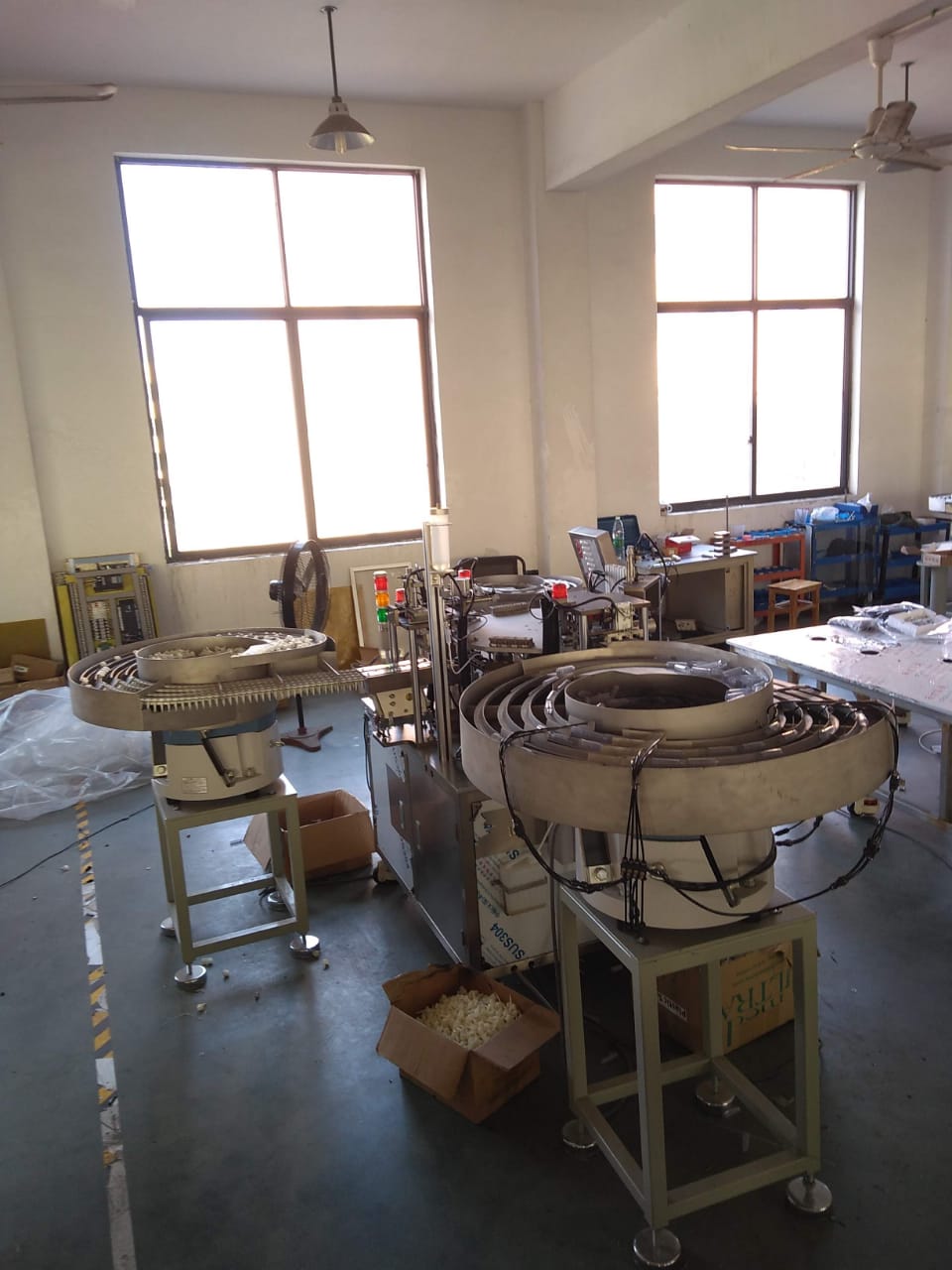

IV set component feeding stations on the factory floor

See It In Action

Product Videos

Infusion Set Automatic Assembly Machine

Automatic assembly of infusion sets end to end.

Infusion Set Assembly Machine

Assembly stations and component feeding.

Latex Tube Automatic Assembly

Infusion set latex tube assembly station.

Technical Data Set

Technical Specifications

Weight
≈ 1800 kg
Voltage
Single phase 220 V
Air Pressure
0.6 – 1.0 MPa
Availability
Made to order
Automation Grade
Fully Automatic
Machine Dimension
3000 × 3600 × 2000 mm
Power Consumption
≈ 8 kW
Production Capacity
5,000 – 5,500 pcs/h

Applications

IV Infusion Sets

Standard vented and non-vented infusion sets.

Transfusion Sets

Blood transfusion set assembly variants.

Hospital Supply

Volume production for clinical consumption.

Device Manufacturers

Turnkey assembly for medical disposable plants.

Support

Frequently Asked Questions

What does the machine assemble?
Complete medical-grade infusion sets — spike, drip chamber, tubing, roller clamp, latex tube and connectors — fed and assembled automatically.
What is the production capacity?
5,000 to 5,500 infusion sets per hour in continuous automatic operation.
What are the utility requirements?
Single-phase 220 V power (about 8 kW) and 0.6–1.0 MPa compressed air, in a 3000 × 3600 × 2000 mm footprint weighing about 1800 kg.
How does it differ from the IV Set Machine?
Both build infusion sets; this line is the compact single-phase assembly configuration — our IV Set Machine page covers the larger multi-station production system.
