High-Precision Syringe Injection Moulds
Syringe Mold
Complete high-precision injection mould sets for disposable syringes from 1 ml to 60 ml — barrel, plunger, gasket, needle hub and cap — machined from premium tool steel for long life and consistent, high-clarity output.
Product Overview
Precision Moulds for Every Syringe Component
We are offering high precision auto injection mould with high grade tool steel material like Stavex 1.2376 grade or M303 Bohler German material like (BD) syringe quality. Additional Information: Delivery Time: 30 days.
Every mould is designed to your cavitation and syringe size, with hot- or cold-runner systems and hardened tool-steel cores built for millions of shots. Beyond syringes, Allied Way also tools moulds for IV sets, blood-collection tubes (BCT) and needles.

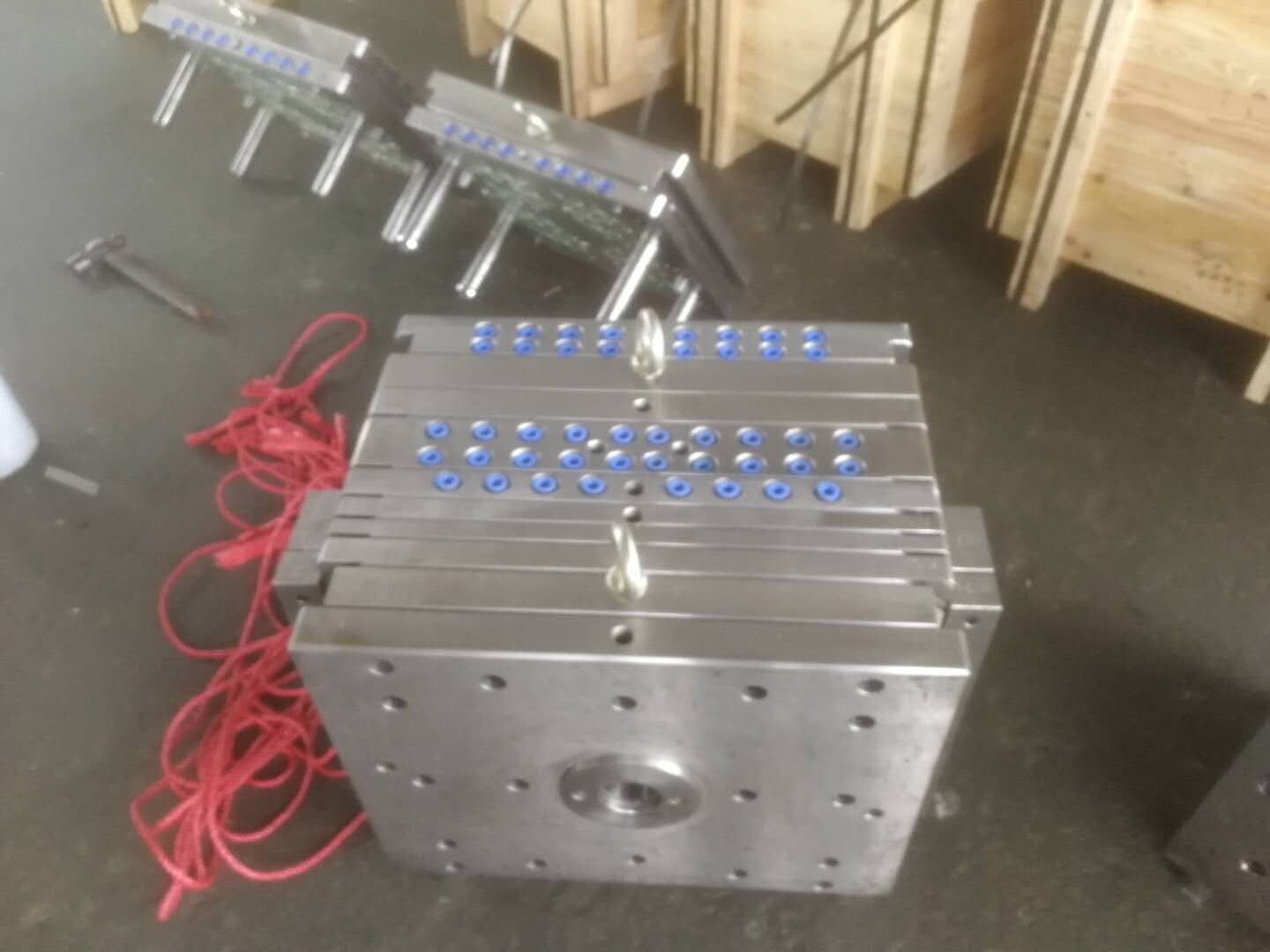

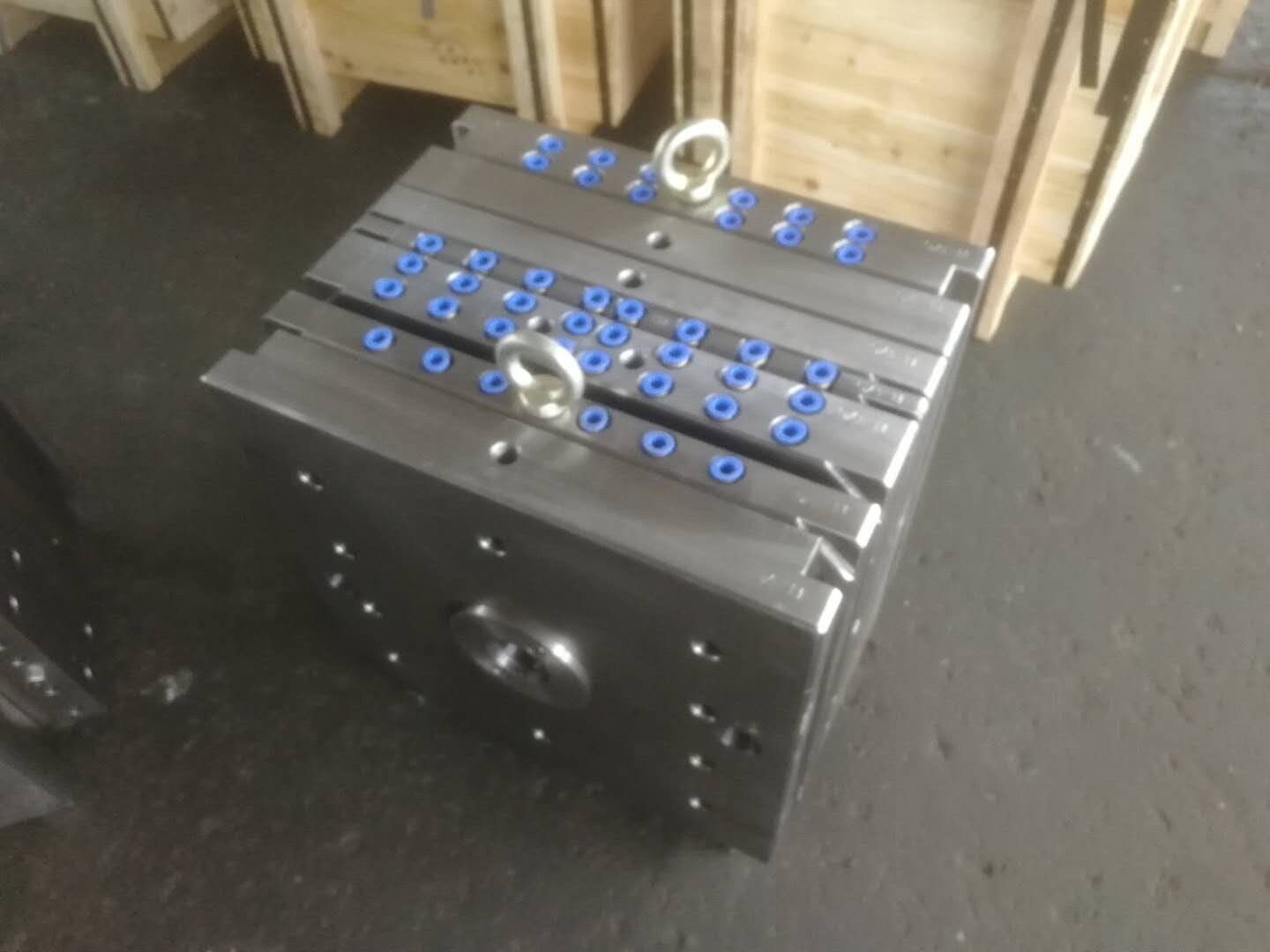

Barrel Moulds
Slip-tip and Luer-lock barrel moulds across the full 1 ml–60 ml range, with mirror-finish cavities for clear, graduation-ready barrels.
-
Slip-tip & Luer-lock designs -
1 ml to 60 ml sizes -
Hot or cold runner systems -
Mirror-finish cavities for clarity

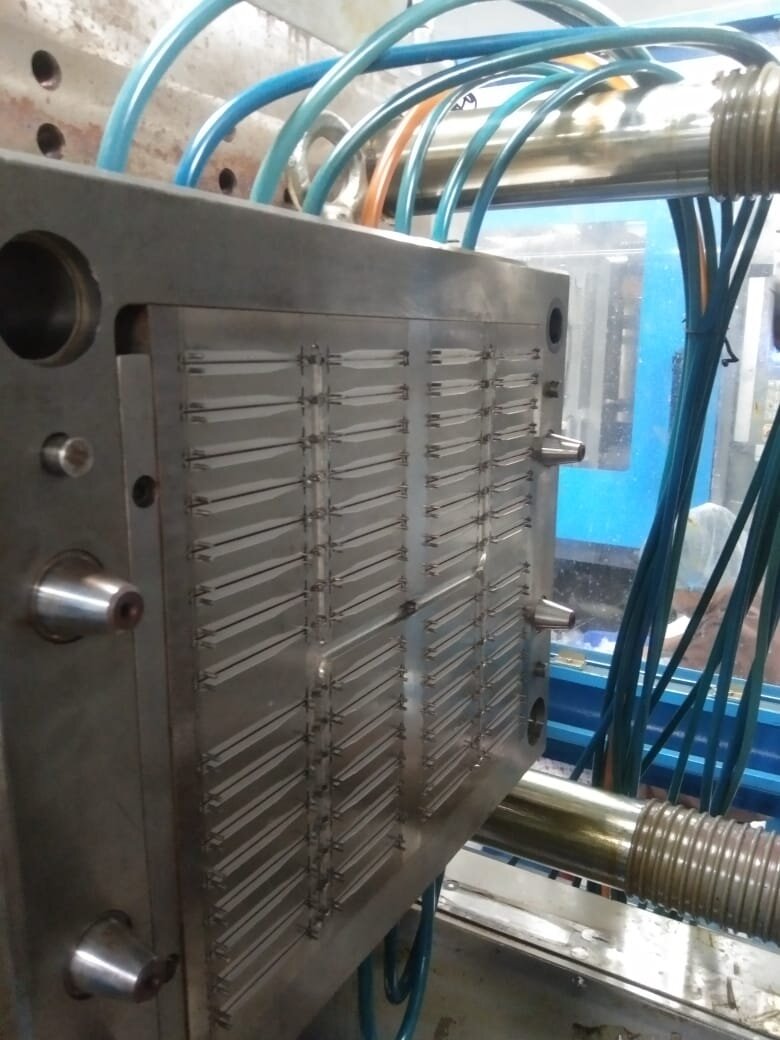

Plunger & Gasket Moulds
Standard and auto-disable (AD) plunger moulds with matched rubber-gasket tooling for consistent sealing.
-
Standard & auto-disable (AD) plungers -
2 ml to 10 ml+ sizes -

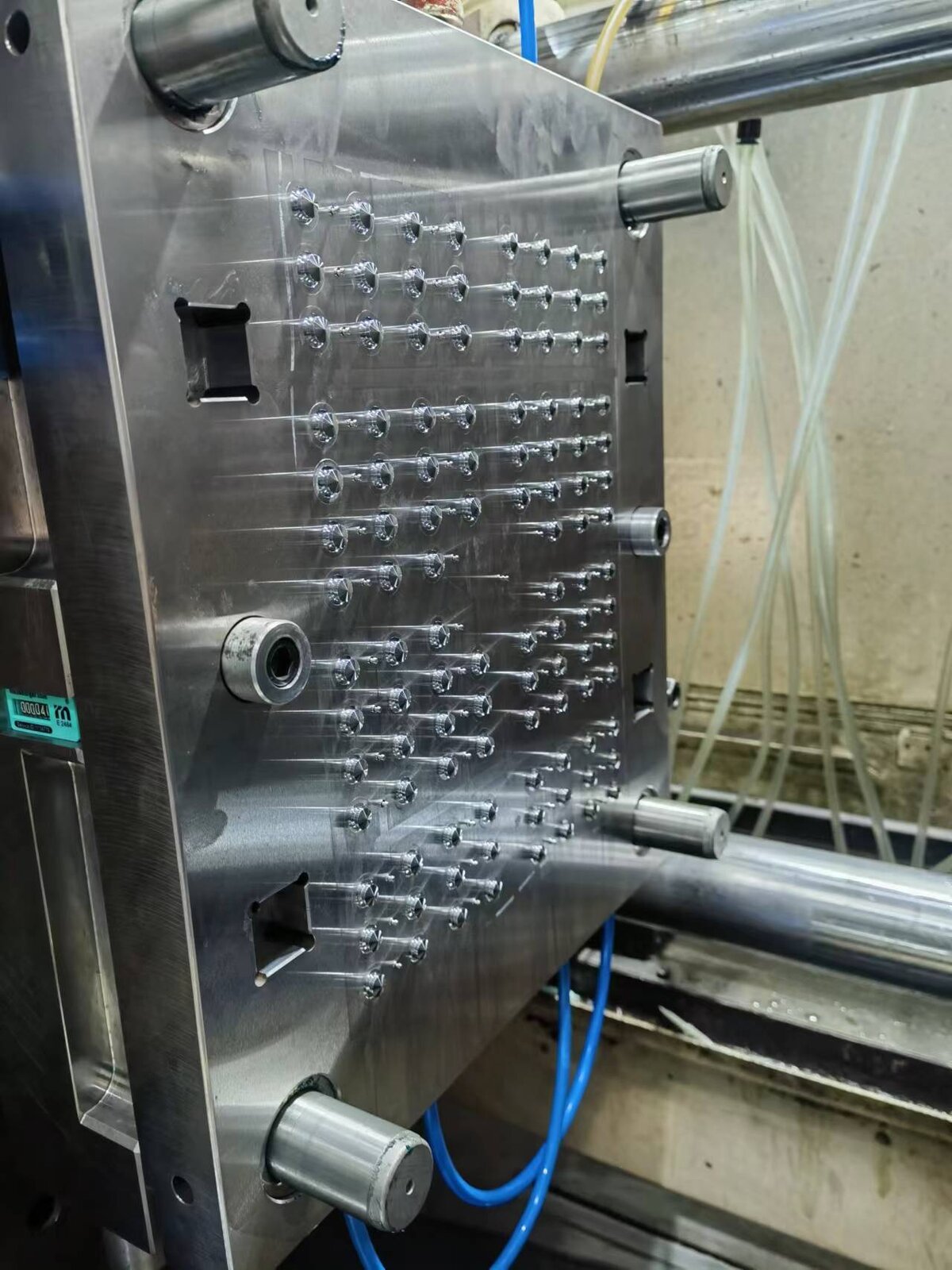

Matched gasket moulds -
Consistent sealing tolerances

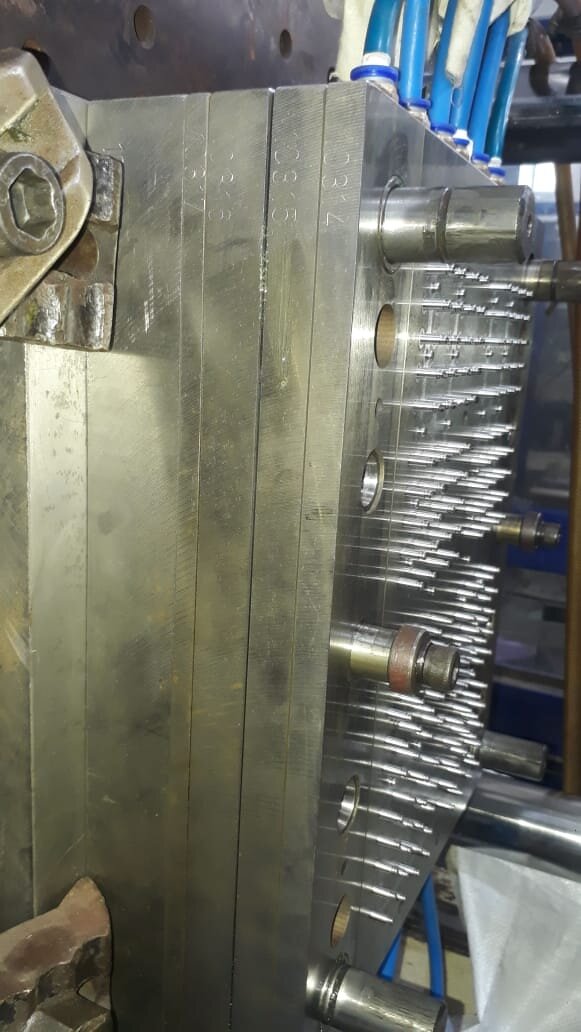

Needle Hub & Cap Moulds
High-cavitation moulds for needle hubs, caps and closures that complete the syringe set.
-
Needle hubs 21G–24G -
Caps & tip closures -
Up to 128 cavities -
Also IV set, BCT & needle moulds
In Detail
Image Gallery
See It In Action
Product Videos
3ml Syringe Plunger Mold
Plunger mold running a production cycle.
2ml Barrel Mold — Production Process
Multi-cavity barrel mold producing 2 ml syringe barrels.
1 Inch Cap Mold — Working Principle
Cap mold operation and part ejection.
10ml Barrel Mold — Complete Working Procedure
Full cycle of the 10 ml barrel mold.
Technical Data Set
Technical Specifications
Applications
Disposable Syringes
Moulds for 1 ml–60 ml disposable syringe barrels, plungers and gaskets.
Auto-Disable Syringes
AD plunger moulds for single-use, auto-disable safety syringes.
Insulin & Specialty
Fine moulds for insulin syringes and low-dead-space designs.
IV Sets, BCT & Needles
Tooling for IV set components, blood-collection tubes and needle hubs.
Support
Frequently Asked Questions
Which syringe components can you mould?
What tool steel do you use?
Can cavitation be customised?
Can you make both slip and Luer-lock designs?
What is the delivery time and warranty?
Request a Quote
Connect with our engineering team for detailed technical specifications, tailored configurations, and volume pricing on our Syringe Mold range — with expert support from selection through delivery and after-sales service.
-
Rigorous in-house quality control -
Global logistics and customs support -
Material traceability and COA provided
